V8 30° Single-V Press Brake Lower Die – H90 × W25 mm, 40 Ton/m
This V8 30° single-V press brake lower die features an 8 mm V-opening, 30° die angle, 90 mm overall height, 75 mm effective height, 25 mm overall width and 16 mm load-bearing body width, with a rated load capacity of 40 ton/m. Designed for very acute-angle bending, pre-bending and multi-stage forming, the narrow V8 opening and 30° groove provide a compact forming profile for precision sheet metal applications. The V-opening, angle, height, effective height, body geometry, edge dimensions, tool length and mounting interface can all be customized according to the customer's workpiece and press brake requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V8 30° Single-V Press Brake Lower Die for Very Acute-Angle Bending
This V8 30° press brake lower die is designed with a single-V structure for sheet metal forming applications requiring a very acute bending angle.

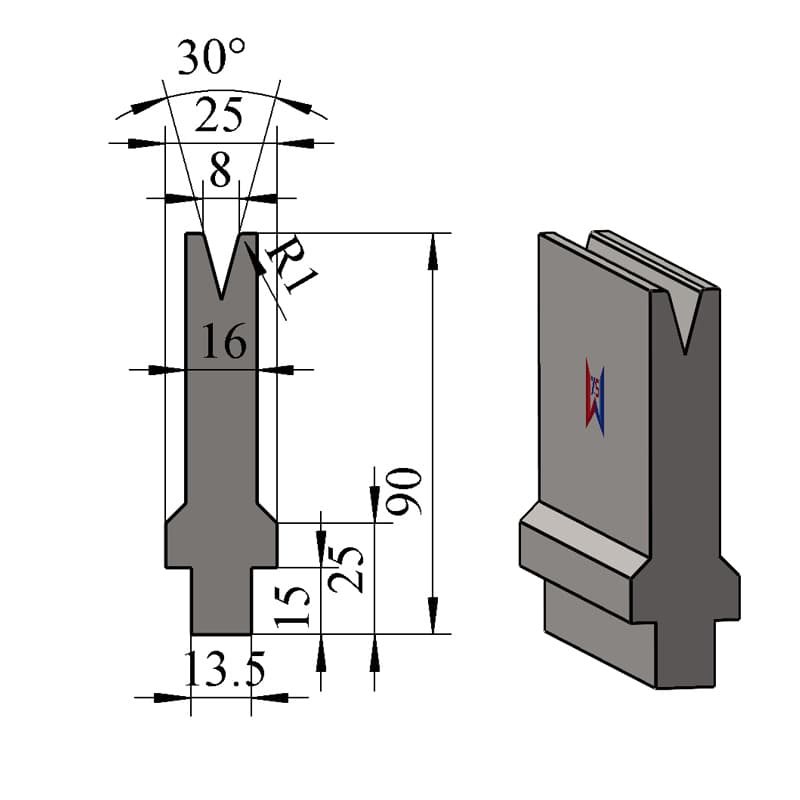

The illustrated configuration features an 8 mm V-opening, 30° die angle, 90 mm overall height, 75 mm effective height, 25 mm overall width and 16 mm load-bearing body width, with a rated load capacity of 40 ton/m.
Its combination of a small V8 opening and narrow 30° V-groove makes this lower die suitable for very acute-angle air bending, pre-bending and multi-stage forming operations. It can be used where a narrower forming angle is required before subsequent bending, hemming or other forming processes.
30° V-Groove for Very Acute-Angle Forming
The 30° V-groove provides additional angular clearance compared with conventional 60°, 85°, 88° and 90° lower dies.
This geometry is suitable for applications such as:
- Very acute-angle sheet metal bending
- Acute-angle air bending
- Pre-bending before subsequent forming
- Multi-stage bending processes
- Precision narrow-flange forming
- Forming applications requiring springback compensation
- Custom sheet metal components with acute-angle profiles
The final V-opening and die angle should be selected according to the material grade, sheet thickness, required bend geometry, inside radius and forming process.
Compact V8 Single-V Geometry
The illustrated lower die uses an 8 mm V-opening combined with a compact load-bearing section.
Its main dimensions are:
- V-opening: 8 mm / V8
- Die angle: 30°
- Overall height: 90 mm
- Effective height: 75 mm
- Overall width: 25 mm
- Load-bearing body width: 16 mm
- Bottom mounting width: 13.5 mm
- Approx. shoulder radius: R1
- Load capacity: 40 ton/m
This compact V8 geometry is particularly suitable for applications where a relatively small V-opening and sharp forming angle are required.
Custom Height, Angle and Edge Geometry
The dimensions shown represent one available configuration rather than the limits of our manufacturing capability.
The effective height, overall height, V-opening, die angle, shoulder radius, body width and surrounding edge dimensions can all be modified according to the customer's bending requirements.
This allows the lower die geometry to be matched with the upper punch, workpiece profile and press brake configuration rather than requiring the customer to adapt the application to a fixed tooling specification.
Key Features
- V8 / 8 mm V-opening
- 30° very acute V-groove
- Single-V lower die structure
- 90 mm overall height
- 75 mm effective height
- 25 mm overall width
- 16 mm load-bearing body width
- 13.5 mm bottom mounting width
- Approx. R1 shoulder radius
- 40 ton/m rated load capacity
- Suitable for very acute-angle bending
- Suitable for pre-bending and multi-stage forming
- Compact lower-tool profile
- Custom V-openings available
- Custom die angles available
- Custom effective heights available
- Custom edge geometry available
- Custom tool lengths and segmentation available
- Custom mounting systems available
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Single-V Press Brake Lower Die |
| V-Opening | V8 / 8 mm |
| Die Angle | 30° |
| Die Structure | Single-V |
| Overall Height | 90 mm |
| Effective Height | 75 mm / Customized |
| Overall Width | 25 mm |
| Load-Bearing Body Width | 16 mm |
| Bottom Mounting Width | 13.5 mm |
| Shoulder Radius | Approx. R1 |
| Load Capacity | 65 ton/m |
| Tool Length | Standard or Customized |
| Segmentation | Available |
| Mounting Interface | Standard or Customized |
| Main Application | Very Acute-Angle Bending / Pre-Bending |
Typical Applications
This V8 30° single-V press brake die can be used for:
- Very acute-angle sheet metal bending
- Acute-angle air bending
- Pre-bending operations
- Multi-stage bending
- Hemming preparation
- Precision flange forming
- Stainless steel sheet bending
- Mild steel sheet bending
- Electrical enclosure manufacturing
- Sheet metal cabinet production
- Machinery components
- Customized sheet metal forming
The appropriate V-opening and tooling geometry should always be selected according to the sheet thickness, material properties, required bending radius, flange dimension, bend angle and required forming force.
Standard & Custom Options
The V8 30° lower die shown on this page is one representative configuration.
WYS Machinery can manufacture different lower die specifications according to customer requirements, including:
- Different V-openings
- Different die angles
- Custom overall heights
- Custom effective heights
- Custom body widths
- Custom shoulder radii
- Custom edge dimensions
- Custom tool lengths
- Segmented tooling
- Custom mounting profiles
- Custom positioning structures
- Different load requirements
We can also manufacture single-V, double-V, multi-V and special-purpose lower dies according to the required bending application.
Compatible Press Brake Tooling Systems
WYS Machinery manufactures press brake lower dies for different machine brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The mounting profile shown in this drawing is therefore not the only available mounting configuration.
The bottom mounting interface, positioning geometry, effective height and complete die cross-section can be manufactured according to the customer's existing tooling system or press brake.
Customers can provide a:
- Press brake model
- Existing lower die drawing
- Tooling cross-section
- Tooling sample
- Workpiece drawing
Our engineering team can then evaluate the application and recommend a suitable lower die configuration.
Custom Press Brake Tooling Design Service
For applications where the required lower die specification is uncertain, customers can provide their workpiece drawing, sheet thickness, material grade, required bend angle and press brake information.
WYS Machinery can evaluate the forming requirement and recommend an appropriate combination of:
V-opening + die angle + height + radius + body geometry + mounting interface.
This is particularly useful for acute-angle applications where the correct lower die geometry must be coordinated with the punch profile and the required forming sequence.
Why Choose WYS Machinery
WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for different forming requirements.
Our lower tooling capabilities include:
- Single-V press brake dies
- Double-V dies
- Multi-V dies
- 30° acute-angle lower dies
- 35° acute-angle lower dies
- 60° lower dies
- 85° and 88° lower dies
- Small V-opening dies
- High-capacity lower dies
- Segmented press brake tooling
- Custom mounting profiles
- Special lower die geometries
- Tooling designed according to customer workpiece drawings
The tooling dimensions shown in our product drawings are reference configurations. Height, width, V-opening, angle, radius, length and mounting structure can be customized for the actual bending application.
