V14 88° Single-V Press Brake Lower Die for Precision Bending

This V14 press brake lower die is designed with a single-V structure for precision sheet metal bending applications requiring a compact and reliable lower tool.

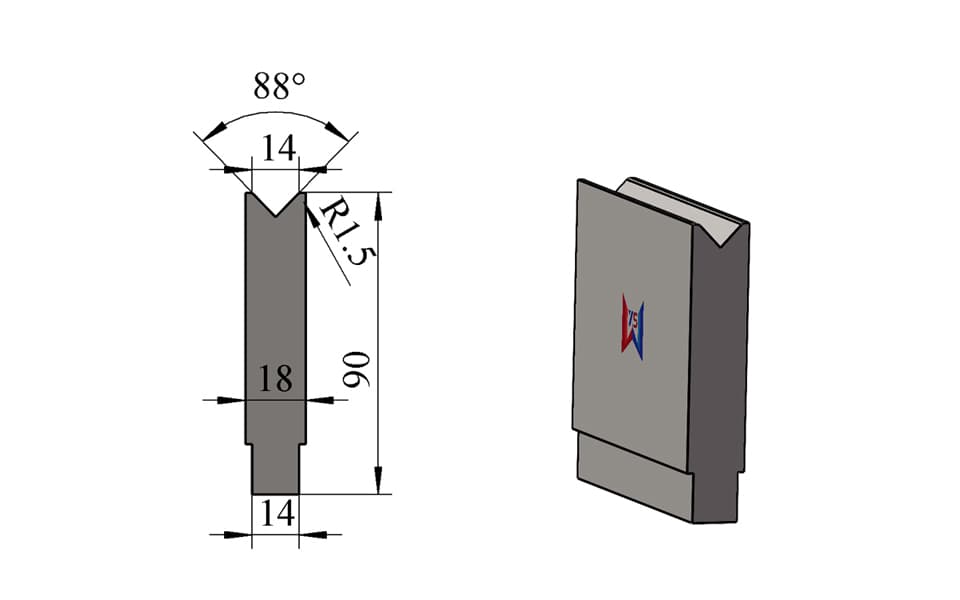

The illustrated model features a 14 mm V-opening, 88° die angle, 90 mm overall height and 18 mm body width, with a rated load capacity of 100 ton/m.

The single-V die design provides a straightforward and stable bending surface, while the 14 mm V-opening offers a practical solution for a wide range of air bending applications involving thin and medium-gauge sheet materials.

The 88° V-groove geometry is suitable for controlled bending and provides additional flexibility when material springback needs to be considered.

Flexible Effective Tool Height

Although the total tool height is 90 mm, the effective working height can be customized according to the customer's tooling setup and machine configuration.

Available effective heights can include:

75 mm, 70 mm or other customized dimensions.

This flexibility allows the lower die to match different punch heights, tooling combinations and press brake configurations.

V14 Single-V Die Geometry

The die uses a single V-groove with a 14 mm opening, providing a simple and efficient lower-tool configuration for general precision bending.

The illustrated model has:

• 14 mm V-opening
• 18 mm main body width
• 14 mm bottom mounting width
• Approx. R1.5 shoulder radius
• 100 ton/m load capacity

The compact cross-section helps maintain good tooling clearance while providing sufficient strength for demanding bending operations within the rated tonnage.

Key Features

• Single-V lower die structure
• V14 / 14 mm V-opening
• 88° die angle
• 90 mm overall height
• 70 mm, 75 mm or customized effective height
• 18 mm main body width
• 14 mm bottom mounting width
• 100 ton/m load capacity
• Approx. R1.5 shoulder radius
• Precision-machined V-groove
• Suitable for controlled air bending
• Custom tool lengths available
• Segmented tooling available
• Custom mounting structures available
• Suitable for standard and custom press brake applications

Technical Specifications

Typical Applications

This V14 88° single-V lower die is suitable for a wide range of sheet metal bending operations, including:

• Precision air bending
• General sheet metal fabrication
• Thin and medium-gauge bending
• Electrical cabinet production
• Control panel fabrication
• Sheet metal enclosures
• Machinery covers
• Stainless steel parts
• Mild steel components
• Precision flange bending
• CNC press brake applications

The appropriate die configuration should be selected according to the material type, sheet thickness, required bending angle, flange length, inside radius and bending tonnage.

Standard & Custom Options

The V14 single-V lower die shown on this page represents one typical tooling configuration only.

WYS Machinery can manufacture press brake dies with customized:

• V-openings
• die angles
• overall heights
• effective heights
• tool widths
• shoulder radii
• bottom mounting widths
• tool lengths
• segmented lengths
• load capacities
• mounting profiles
• positioning structures
• clamping interfaces

Different V-openings such as V6, V8, V10, V12, V14, V16, V20 and other custom sizes can be manufactured according to the actual bending application.

Single-V, multi-V and other lower die structures are also available according to customer requirements.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture customized lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The lower mounting profile, positioning structure, tool height and working height can all be adapted to match the customer's machine configuration.

Customers can provide a machine model, tooling drawing, die cross-section, existing sample or workpiece drawing for technical evaluation.

Custom Press Brake Die Design Service

For applications where the suitable V-opening, die angle or tooling structure has not yet been determined, customers can provide:

workpiece drawing, material type, sheet thickness, bending angle and press brake model.

Our engineering team can recommend a suitable lower die configuration according to the actual bending requirement.

The V-opening, angle, height, effective height, width, radius, length and mounting structure can all be customized.

Why Choose WYS Machinery

WYS Machinery manufactures standard and customized press brake lower dies, punches and sheet metal bending tooling.

Our lower die manufacturing capabilities include:

• Single-V dies
• Multi-V dies
• Narrow V-dies
• Heavy-duty lower dies
• Segmented dies
• Customized working heights
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement dies for different tooling systems
• Tooling design based on customer workpiece drawings

Customers can obtain both standard replacement tooling and customized bending solutions according to their actual production requirements.
