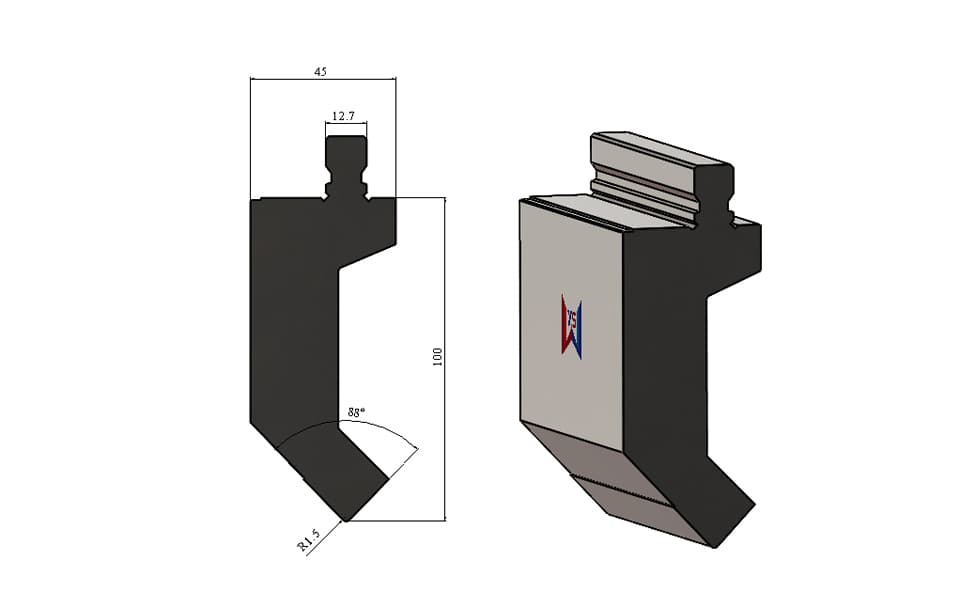

WILA American Style 88° Heavy-Duty Top Tool – H100mm, R1.5, 160 Ton/m
This WILA American Style heavy-duty top tool features an 88° working angle, 100 mm working height, R1.5 mm tip radius and maximum load capacity of 160 ton/m. Its 12.7 mm tang and shoulder-loaded mounting profile are designed for compatible American Style clamping systems. The reinforced 45 mm tool body provides high load-bearing strength for thick plate and demanding press brake applications.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This WILA American Style 88° top tool is designed for high-force sheet metal and plate bending. Its reinforced 45 mm-wide body supports a maximum rated load of 160 ton/m, making it suitable for applications requiring greater capacity than conventional narrow press brake punches.
The American Style upper mounting profile features a 12.7 mm tang and transfers the bending force through the tool shoulders. This shoulder-loaded design provides stable seating in a compatible clamping system and helps transmit high forming loads through the reinforced tool body.
An 88° working angle makes the punch suitable for common air-bending operations, while the R1.5 mm tip provides a practical balance between bend-line control and resistance to localized stress. The body profile also offers limited clearance for previously formed flanges and complex workpiece shapes.
Manufactured from 42CrMo alloy steel and hardened to HRC54±2, the punch provides dependable strength, wear resistance and dimensional stability for continuous industrial production.
Key Features
- American Style upper-tool mounting profile
- 12.7 mm tang for compatible clamping systems
- Shoulder-loaded structure for stable force transfer
- Reinforced 45 mm-wide tool body
- Maximum load capacity of 160 ton/m
- Suitable for thick plate and high-force bending
- 100 mm working height
- 88° tip angle for general air bending
- R1.5 mm punch-tip radius
- Profile provides limited flange-clearance space
- Manufactured from 42CrMo alloy steel
- Working area hardened to HRC54±2
- Continuous and segmented tool lengths available
- Mounting profile and working dimensions can be customized
Technical Specifications
| Parameter | Specification |
|---|---|
| Tool Type | American Style Press Brake Top Tool |
| Product Compatibility | WILA American Style Tooling System |
| Punch Profile | Heavy-Duty Upper Punch |
| Working Height (H) | 100 mm |
| Tool Body Width | 45 mm |
| Upper Tang Width | 12.7 mm |
| Tip Angle (α) | 88° |
| Tip Radius (R) | 1.5 mm |
| Maximum Load | 160 ton/m |
| Load Transfer | Shoulder-Loaded |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC54±2 |
| Length | Continuous or segmented, customizable |
| Primary Application | Thick plate and high-force bending |
Typical Applications
This American Style heavy-duty top tool is suitable for:
- Thick plate air bending
- High-tonnage press brake operations
- General 90° component production
- Structural sheet metal components
- Heavy machinery panels and covers
- Construction and agricultural equipment parts
- Transportation and vehicle components
- Industrial cabinets and equipment housings
- Steel doors and reinforced panels
- Mild steel, stainless steel and other metal plates
- Medium- and high-volume press brake production
- Components requiring limited flange clearance
The 88° punch angle provides room to compensate for material springback when forming approximately 90° finished bends. The actual result depends on the material grade, thickness, lower-die V-opening and press brake settings.
Although the punch is rated for a maximum load of 160 ton/m, the complete tooling system must be checked before production. The required bending force must remain within the rated capacities of the upper punch, lower die, clamping system and press brake.
Product Details & Manufacturing Quality
The wide, reinforced body provides the cross-sectional strength required for heavy-duty bending. Its shoulder-loaded configuration transfers forming force through the upper shoulders rather than relying only on the 12.7 mm tang.
The punch is manufactured from selected 42CrMo alloy steel, providing a reliable combination of strength, toughness and fatigue resistance. Its working area is hardened to HRC54±2 to help resist tip wear, indentation and deformation under repeated loading.
Precision machining maintains the 88° tip angle, R1.5 mm radius and mounting geometry throughout the tool length. Accurate shoulder and tang dimensions support stable installation, consistent tool alignment and repeatable bending results.
The punch can be supplied in continuous lengths for long straight bends or as a segmented set for boxes, panels and workpieces with interfering side flanges.
Standard & Custom American Style Press Brake Tooling
WYS Machinery manufactures standard and customized American Style upper punches, heavy-duty punches, gooseneck punches, lower dies, adapters and related press brake tooling for compatible clamping systems.
Customers can provide their workpiece drawings, plate thickness, material grade, bending length and required inside radius. Our technical team can evaluate the required forming force and recommend an appropriate upper punch, lower-die V-opening and tooling arrangement.
Available customization options include:
- Working height and tool-body width
- Punch angle and tip radius
- Load-bearing section and rated capacity
- Tang and shoulder dimensions
- Continuous or segmented tool lengths
- Customized segment arrangements
- Clearance and relief profiles
- Surface blackening or protective coating
- Tooling for thick and high-strength materials
- Mounting profiles for different press brake systems
This product is manufactured as compatible replacement press brake tooling. It is not presented as an original WILA-manufactured product and does not imply official affiliation, authorization or endorsement by WILA.
