WILA Type 80° Heavy-Duty Gooseneck Punch – H163mm, R6, 130 Ton/m
This WILA Type 80° heavy-duty gooseneck punch is designed for thick plate bending and other high-force press brake applications. It features a 163 mm working height, reinforced load-bearing profile, R6 mm tip radius and maximum load capacity of 130 ton/m. The gooseneck body also provides clearance for previously formed flanges and complex workpiece profiles.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This WILA Type heavy-duty gooseneck punch combines a high load capacity with a recessed clearance profile. Rated at up to 130 ton/m, it is designed for thick plate bending and demanding applications that require greater strength than a conventional gooseneck punch.
The 80° working angle provides additional allowance for material springback and supports acute or near-right-angle forming when paired with a suitable lower die. Its R6 mm tip distributes forming pressure over a broader contact area than a small-radius punch, making it better suited to thicker materials and components requiring a larger inside bend radius.
With a working height of 163 mm, the punch provides useful reach for deep workpieces. Its gooseneck profile offers clearance around previously formed flanges and raised edges, although the available clearance should always be checked against the actual component drawing and bending sequence.
The tool uses a top load-bearing structure and is manufactured from 42CrMo alloy steel. Its working area is hardened to HRC54±2 for dependable resistance to wear, deformation and repeated high-load operation.
Key Features
- WILA Type upper punch for compatible clamping systems
- Heavy-duty profile rated for a maximum load of 130 ton/m
- Suitable for thick plate and high-force bending
- 80° tip angle provides springback allowance
- R6 mm punch tip supports larger-radius bending
- Wider tip distributes forming pressure more effectively
- Gooseneck profile provides clearance for formed flanges
- 163 mm working height for increased bending reach
- Top load-bearing structure
- Manufactured from 42CrMo alloy steel
- Working area hardened to HRC54±2
- Precision-machined for consistent bending results
- Continuous and segmented tool lengths available
- Dimensions and clearance profiles can be customized
Technical Specifications

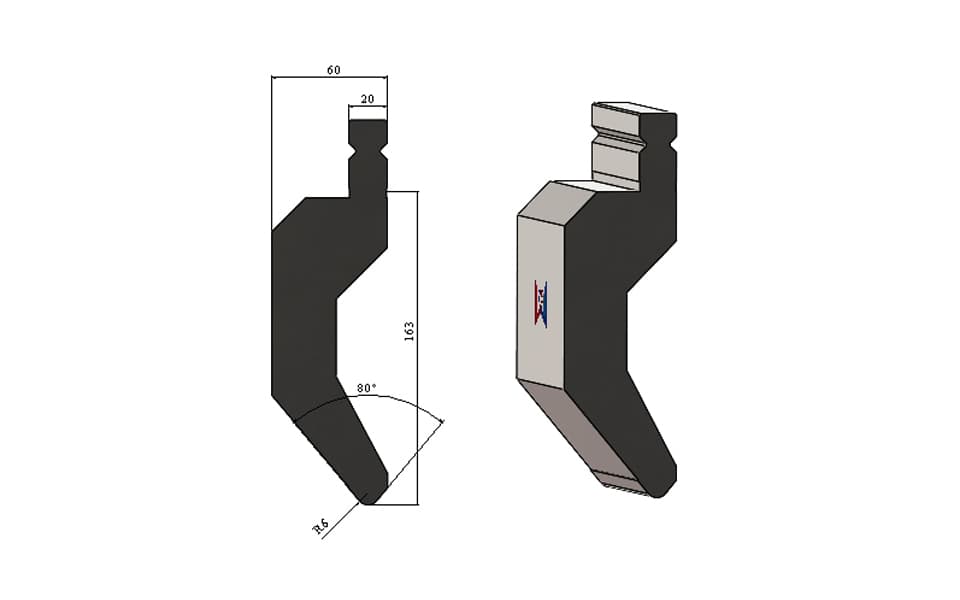

| Parameter | Specification |
|---|---|
| Tool Type | WILA Type Press Brake Upper Punch |
| Punch Profile | Heavy-Duty Gooseneck Punch |
| Working Height (H) | 163 mm |
| Maximum Profile Width | 60 mm |
| Upper Clamping Width | 20 mm |
| Tip Angle (α) | 80° |
| Tip Radius (R) | 6 mm |
| Maximum Load | 130 ton/m |
| Load-Bearing Structure | Top Load-Bearing |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC54±2 |
| Length | Continuous or segmented, customizable |
| Primary Application | Thick plate and high-force bending |
Typical Applications
This heavy-duty WILA Type gooseneck punch is suitable for:
- Thick plate bending
- High-tonnage air bending
- Components requiring a larger inside bend radius
- Bending near previously formed flanges
- Heavy machinery panels and structural components
- Construction equipment parts
- Industrial enclosures and heavy electrical cabinets
- Thick metal doors and equipment housings
- Transportation and vehicle components
- Large boxes, channels and fabricated profiles
- Mild steel, stainless steel and high-strength plate
- Multi-stage bending with restricted workpiece clearance
The R6 punch tip is particularly suitable when the workpiece requires a larger inside radius or when a small-radius tip would create excessive localized pressure. However, the finished inside radius also depends on the lower-die V-opening, material properties and forming method.
The actual permissible plate thickness and bending length must be calculated according to material tensile strength, lower-die opening and machine capacity. The required force must remain within the rated capacities of the punch, lower die, clamping system and press brake.
Product Details & Manufacturing Quality
The punch has a reinforced cross-section designed to transmit higher forming loads while retaining practical flange clearance. Compared with a conventional narrow gooseneck punch, its wider body and R6 tip provide greater structural strength for heavy-duty bending.
Selected 42CrMo alloy steel provides the toughness and fatigue resistance required for repeated loading. The working area is hardened to HRC54±2 to improve resistance to wear, indentation and dimensional change.
Precision machining maintains the 80° tip angle, R6 radius and gooseneck profile throughout the tool length. Accurate geometry supports reliable punch-to-die alignment and consistent results across continuous or segmented sections.
Standard & Custom WILA Type Press Brake Tooling
WYS Machinery manufactures standard and customized WILA Type heavy-duty punches, gooseneck punches, straight punches, acute-angle punches, lower dies, adapters and related press brake tooling.
Customers can provide their workpiece drawings, plate thickness, material grade, bending length and required inside radius. Our technical team can evaluate the forming force, flange clearance and bending sequence before recommending a suitable punch-and-die combination.
Available customization options include:
- Working height and overall profile dimensions
- Gooseneck depth and clearance profile
- Punch angle and tip radius
- Load-bearing width and rated capacity
- Continuous or segmented tool lengths
- Customized section arrangements
- Standard, reversed or mirrored gooseneck profiles
- Mounting and clamping structure
- Surface blackening and protective coating
- Special tooling for thick and high-strength materials
This product is manufactured as WILA Type compatible press brake tooling. It is not presented as an original WILA-manufactured product and does not imply official affiliation, authorization or endorsement by WILA.
