WILA Type 86° Gooseneck Press Brake Punch – H163mm, R1, 65 Ton/m
This WILA Type 86° gooseneck press brake punch features a 163 mm working height, R1 mm tip radius and maximum load capacity of 65 ton/m. Its recessed gooseneck profile provides clearance for previously formed flanges, return bends and box-shaped components. Manufactured from 42CrMo alloy steel and hardened to HRC54±2, it delivers reliable strength, wear resistance and bending accuracy.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This WILA Type 86° gooseneck punch is designed for bending sheet metal components that require additional clearance around previously formed flanges or vertical walls. Its recessed body profile helps reduce tool interference during secondary and multi-stage bending operations.
The 163 mm working height provides useful reach for deep components, while the 86° working angle is suitable for common air-bending applications. An R1 mm punch-tip radius supports accurate bend-line positioning and consistent forming results.
The punch uses a top load-bearing structure and has a maximum rated capacity of 65 ton/m. Manufactured from 42CrMo alloy steel and hardened to HRC54±2, it provides the strength, dimensional stability and wear resistance required for repeatable industrial production.
Key Features
- WILA Type gooseneck punch for compatible clamping systems
- Recessed profile provides clearance for formed flanges
- Suitable for return bends, boxes and enclosed components
- 163 mm working height for increased bending reach
- 86° punch angle for general air-bending operations
- R1 mm tip radius for controlled bend-line positioning
- Top load-bearing structure
- Maximum load capacity of 65 ton/m
- Manufactured from 42CrMo alloy steel
- Working area hardened to HRC54±2
- Precision-machined profile for repeatable bending
- Available in continuous or segmented lengths
- Dimensions and clearance profiles can be customized

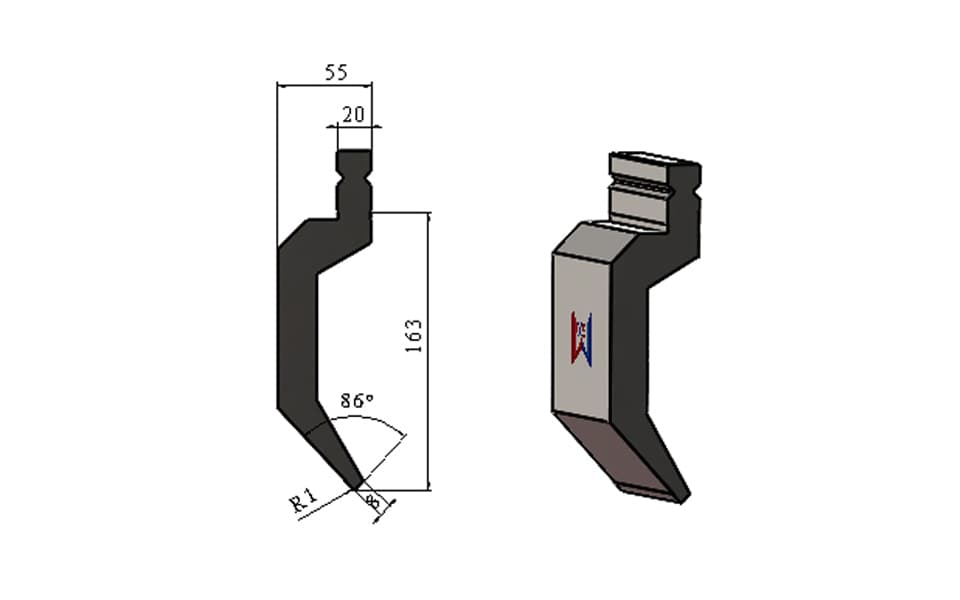

Technical Specifications
| Parameter | Specification |
|---|---|
| Tool Type | WILA Type Press Brake Upper Punch |
| Punch Profile | Gooseneck Punch |
| Working Height (H) | 163 mm |
| Maximum Profile Width | 55 mm |
| Upper Clamping Width | 20 mm |
| Tip Angle (α) | 86° |
| Tip Radius (R) | 1 mm |
| Maximum Load | 65 ton/m |
| Load-Bearing Structure | Top Load-Bearing |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC54±2 |
| Tool Length | Continuous or segmented, customizable |
| Main Function | Clearance bending for formed flanges |
Typical Applications
This WILA Type gooseneck punch is suitable for:
- Secondary bending near previously formed flanges
- Return-flange and reverse-flange bending
- Box and tray manufacturing
- Electrical cabinets and control enclosures
- Metal doors and equipment housings
- Components with upright or inward-facing edges
- Machinery guards and protective covers
- HVAC panels and ventilation components
- Multi-stage sheet metal bending
- Mild steel, stainless steel and aluminium fabrication
- CNC hydraulic and servo-electric press brakes
The gooseneck profile provides clearance around the workpiece during bending. Actual usable clearance depends on the flange height, workpiece angle, bending position and forming sequence. The workpiece drawing should therefore be checked before the final tooling profile is confirmed.
The permissible sheet thickness and bending length depend on the material strength, lower-die V-opening, forming method and press brake capacity. The required bending force must remain within the rated capacities of the punch, lower die and machine.
Product Details & Manufacturing Quality
The punch is manufactured from selected 42CrMo alloy steel, providing a reliable balance of mechanical strength, toughness and fatigue resistance. Its working area is hardened to HRC54±2 to improve resistance to wear and deformation during repeated bending cycles.
Precision machining maintains the accuracy of the 86° working angle, R1 mm tip radius and gooseneck profile throughout the tool length. Consistent geometry helps maintain accurate bend-line positioning and stable forming results in batch production.
Because a gooseneck profile has a recessed body, its load-bearing capacity is influenced by the narrowest section of the tool. The stated maximum load of 65 ton/m must not be exceeded, and the actual forming force should be calculated according to the sheet material, thickness, bend length and lower-die opening.
The punch can be supplied in a continuous length for long straight components or as a segmented set for boxes, trays, doors and workpieces with interfering side flanges.
Standard & Custom WILA Type Press Brake Tooling
WYS Machinery manufactures standard and customized WILA Type gooseneck punches, straight punches, acute-angle punches, lower dies, hemming tools, adapters and other press brake tooling.
Customers can provide their workpiece drawings, material specifications, sheet thickness and required bending profiles. Our technical team can evaluate the flange-clearance requirements and recommend an appropriate punch profile, lower-die opening and bending sequence.
Available customization options include:
- Working height and overall profile dimensions
- Gooseneck depth and clearance profile
- Punch angle and tip radius
- Load-bearing section and rated capacity
- Continuous or segmented tool lengths
- Customized section arrangements and horn pieces
- Standard, reversed or mirrored clearance profiles
- Upper mounting and clamping structure
- Surface blackening and protective coating
- Special profiles for boxes and complex components
This product is manufactured as WILA Type compatible press brake tooling. It is not presented as an original WILA-manufactured product and does not imply official affiliation, authorization or endorsement by WILA.
