WILA Type 28° High-Reach U-Profile Hemming Punch – H200mm, 100 Ton/m
This WILA Type high-reach U-profile hemming punch features a 200 mm working height, 10 mm working-nose width, 28° tip angle and R1 mm radius. Commonly used for pre-bending and flattening approximately 1.2 mm sheet metal, its extended-reach body and 100 ton/m load capacity make it suitable for deep components, tall side walls and demanding customized U-profile forming applications.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This WILA Type high-reach U-profile hemming punch is designed for forming and flattening narrow U-shaped sheet metal profiles. Its 200 mm working height provides extended reach for deep components and workpieces with tall side walls.
The 10 mm-wide working nose enters the customized lower-tool profile to form or flatten the folded sides of the component. Its 28° working angle supports deep pre-bending, while the R1 mm tip provides controlled bend-line positioning.
The displayed design is commonly used for approximately 1.2 mm sheet metal and has a maximum rated load of 100 ton/m. Manufactured from 42CrMo alloy steel and hardened to HRC54±2, it provides reliable strength, wear resistance and forming accuracy.
All dimensions shown are reference specifications. The working height, nose width, punch angle, tip radius, mounting profile and matching lower tool can be customized according to the finished component.
Key Features
- WILA Type upper-tool mounting profile
- Designed for U-profile pre-bending and flattening
- Extended 200 mm working height
- Suitable for deep components and high side walls
- Commonly used for approximately 1.2 mm sheet
- 10 mm-wide working nose
- 28° profile for acute pre-bending
- R1 mm punch-tip radius
- Maximum load capacity of 100 ton/m
- Manufactured from 42CrMo alloy steel
- Working area hardened to HRC54±2
- Continuous and segmented lengths available
- Upper and lower tooling profiles can be fully customized

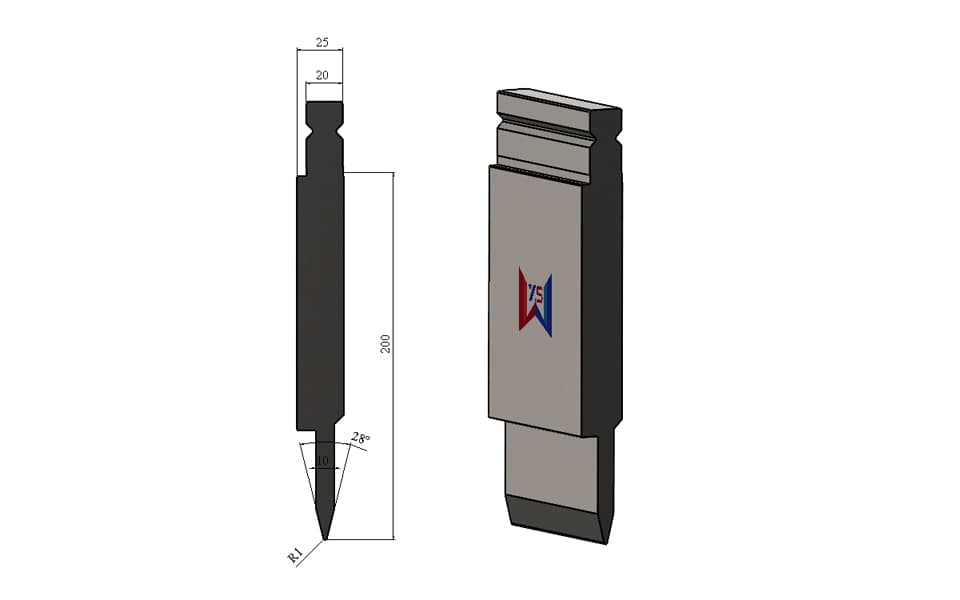

Technical Specifications
| Parameter | Reference Specification |
|---|---|
| Tool Type | WILA Type Press Brake Upper Punch |
| Punch Profile | High-Reach U-Profile Hemming Punch |
| Working Height (H) | 200 mm |
| Tool Body Width | 25 mm |
| Upper Clamping Width | 20 mm |
| Working Nose Width | 10 mm |
| Tip Angle (α) | 28° |
| Tip Radius (R) | 1 mm |
| Typical Sheet Thickness | Approximately 1.2 mm |
| Maximum Load | 100 ton/m |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC54±2 |
| Length | Continuous or segmented, customizable |
| Main Application | Deep U-profile forming and flattening |
The technical parameters above describe the displayed configuration rather than limiting the available product range. WYS Machinery can customize the height, width, angle, radius, mounting structure and matching lower-tool geometry.
Working Principle
The punch is normally used with a customized lower tool in a multi-stage U-profile forming process:
1. Pre-Bending
The 28° tip creates the acute bends required on both sides of the sheet-metal profile.
2. U-Profile Forming
The workpiece is formed to the specified U-shaped width and depth using the matched upper and lower tools.
3. Flattening
The folded portions are compressed to achieve the required final gap, reinforcement profile or closed condition.
The exact forming sequence depends on the finished workpiece. Some parts require separate pre-bending and flattening operations, while specially designed tooling can integrate multiple forming functions.
Typical Applications
This high-reach U-profile hemming punch is suitable for:
- Forming narrow U-shaped folded profiles
- Pre-bending and flattening approximately 1.2 mm sheet
- Processing components with deep working positions
- Bending inside high-sided boxes and enclosures
- Producing reinforced or double-folded edges
- Manufacturing deep channels and narrow profiles
- Electrical cabinets and control enclosures
- Metal doors and access panels
- Machinery covers and protective guards
- Automotive and transportation components
- Appliance and metal-furniture parts
- Mild steel, stainless steel and aluminium fabrication
The stated 1.2 mm sheet thickness is a typical application reference rather than an absolute limit. The appropriate tooling design depends on material strength, ductility, profile dimensions, bending length and required final gap.
Product Details & Manufacturing Quality
The punch is manufactured from selected 42CrMo alloy steel to provide the strength, toughness and fatigue resistance required for repeated forming. Its working area is hardened to HRC54±2 to improve resistance to wear and deformation.
Precision machining controls the 28° working profile, R1 mm tip and 10 mm nose width throughout the tool length. Accurate geometry supports consistent alignment with the customized lower tool and repeatable U-profile dimensions.
The H200 body provides greater reach than a conventional-height punch, while the rated load of 100 ton/m supports more demanding forming conditions. Nevertheless, the actual working force must remain within the capacities of the upper punch, matching lower tool, clamping system and press brake.
Standard & Custom U-Profile Hemming Tooling
WYS Machinery manufactures customized U-profile hemming punches, matching lower tools, acute-angle punches, flattening tools and complete press brake hemming solutions.
Customers can provide their finished component drawings, material grade, sheet thickness, bending length and required internal profile. Our technical team can design a suitable upper and lower tooling combination and recommend the forming sequence.
Available customization options include:
- Working height and overall tool width
- Working-nose width and length
- Punch angle and tip radius
- U-profile width and depth
- Final flattening gap
- Load-bearing section and rated capacity
- Continuous or segmented tool lengths
- Upper and lower mounting structures
- Tooling for different sheet thicknesses
- Surface blackening or protective coating
- WILA, TRUMPF, LVD, Bystronic and other compatible structures
This product is manufactured as WILA Type compatible press brake tooling. It is not presented as an original WILA-manufactured product and does not imply official affiliation, authorization or endorsement by WILA.
