A Station Ground Symbol Marking Tool for Turret Punch Press
A Station ground symbol marking tool designed to form a permanent grounding identification mark directly on sheet metal. Custom logos, symbols and marking profiles are available, with upward or downward forming and multiple punch press tooling systems manufactured to customer
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

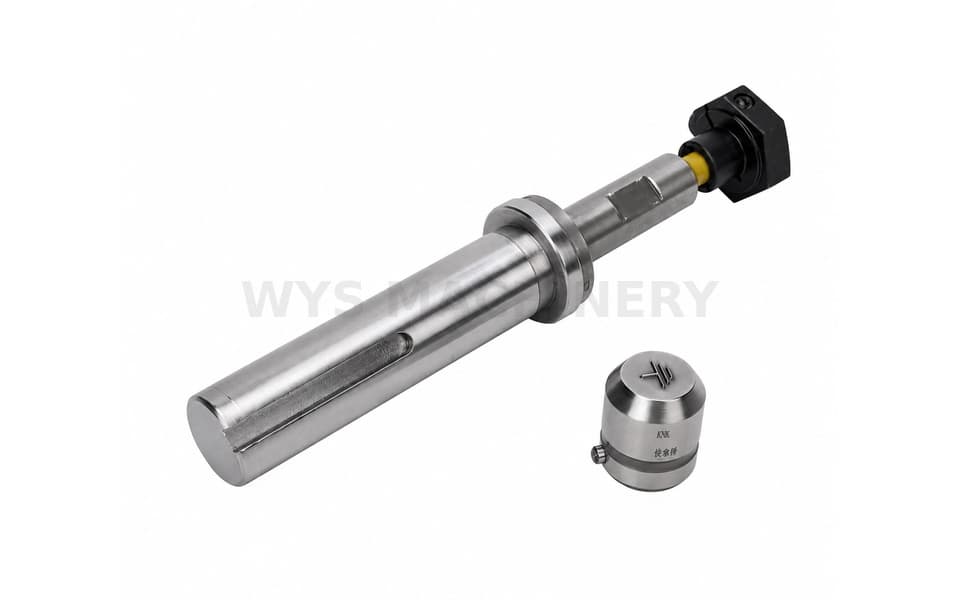

This A Station ground symbol marking tool is designed to form a permanent grounding identification mark directly on sheet metal using a turret punch press. The formed symbol provides clear and durable identification without requiring a separate labeling process.
The tooling can be customized for different logos, symbols, marking dimensions and forming profiles according to customer drawings and sheet metal requirements. Upward or downward marking configurations are available depending on the required appearance and orientation.
WYS Machinery can manufacture thick turret and thin turret marking tools in A, B, C, D and E station sizes. TRUMPF and Murata Wiedemann type structures are also available for different punch press systems.
Key Features
- Forms permanent ground symbols directly on sheet metal
- A Station configuration for turret punch press applications
- Custom logos, symbols and marking profiles available
- Upward and downward forming configurations available
- Mark size and geometry can be customized
- Thick turret and thin turret tooling available
- A, B, C, D and E station sizes available
- TRUMPF and Murata Wiedemann type structures available
- Manufactured according to customer drawings and marking requirements
Technical Specifications
| Item | Specification |
|---|---|
| Tool Type | Logo / Symbol Marking Tool |
| Marking Type | Ground Symbol |
| Station | A Station |
| Tooling System | Thick Turret |
| Forming Direction | Upward / Downward |
| Symbol / Logo | Customizable |
| Mark Dimensions | Customizable |
| Marking Profile | Customizable |
| Other Station Sizes | B / C / D / E Available |
| Other Tooling Systems | Thin Turret / TRUMPF / Murata Wiedemann Types |
| Customization | Drawing / Symbol / Application Based |
Typical Applications
- Electrical cabinets and enclosures
- Grounding point identification
- Electrical equipment panels
- Control cabinets
- Industrial equipment housings
- Permanent sheet metal identification
- Custom logos and symbols
- Product and component marking
Manufacturing Quality
Precision machining helps reproduce clear symbol geometry and consistent marking results on sheet metal components. Tool dimensions and forming profiles can be engineered according to the required symbol, sheet thickness, material properties and marking direction.
Standard & Custom
The ground symbol shown is one example of a custom punch press marking solution and does not represent a limitation on available symbols, logos or marking profiles.
WYS Machinery can manufacture custom logo and symbol marking tools according to customer drawings and application requirements. Symbol geometry, dimensions and forming direction can be customized. Thick turret and thin turret configurations are available in A, B, C, D and E station sizes, as well as TRUMPF and Murata Wiedemann type structures.
