D Station Thick Turret Louver Forming Tool

The WYS Machinery D Station Thick Turret Louver Forming Tool is a special sheet metal forming tool developed for producing raised ventilation louvers directly on compatible CNC turret punch presses.

Unlike an ordinary piercing tool that only cuts and removes material, a louver tool combines controlled cutting and forming. During the machine stroke, the cutting section creates the required slit while the matching forming profiles progressively displace the sheet to produce a raised louver opening.

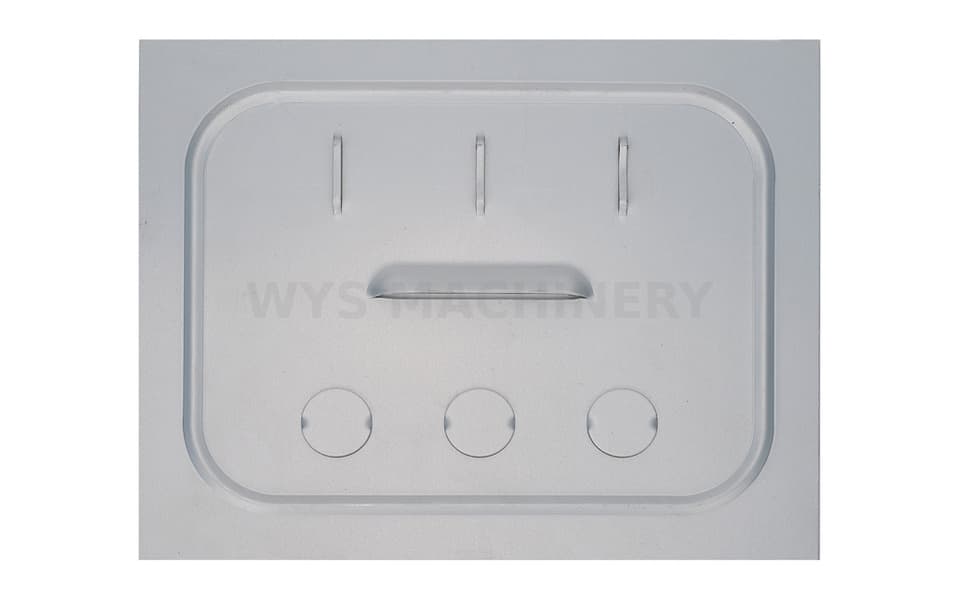

The resulting louver allows air to pass through the sheet while helping reduce direct entry of water, dust or foreign objects, depending on the finished-part design and installation direction.

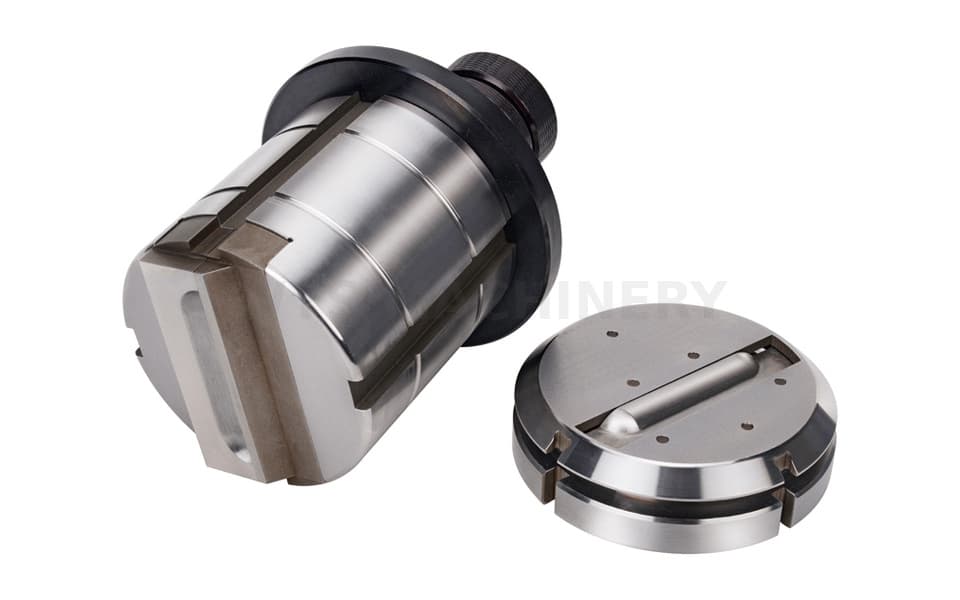

The tool shown in the photographs is a complete D Station thick turret assembly consisting of:

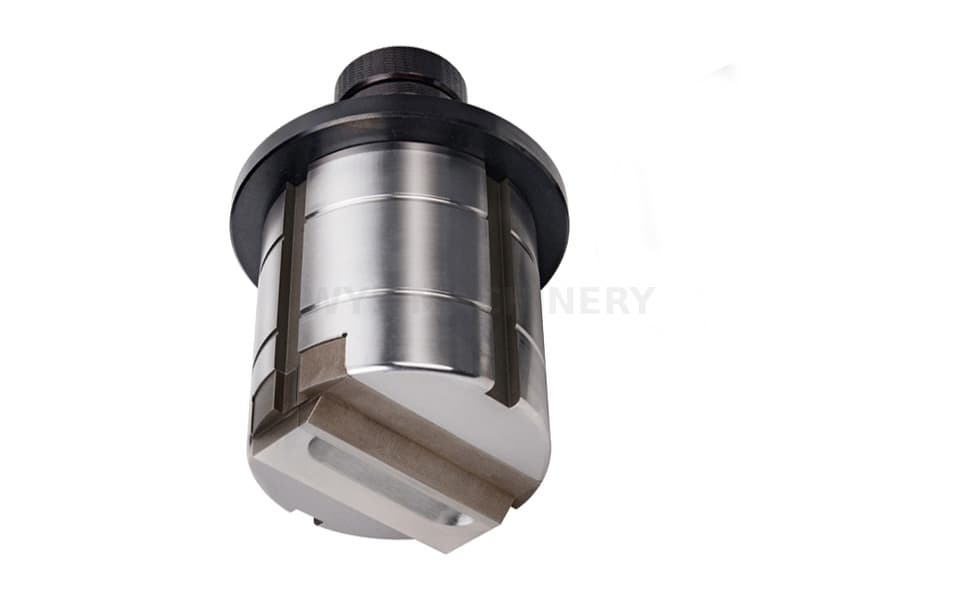

• Upper forming-tool assembly

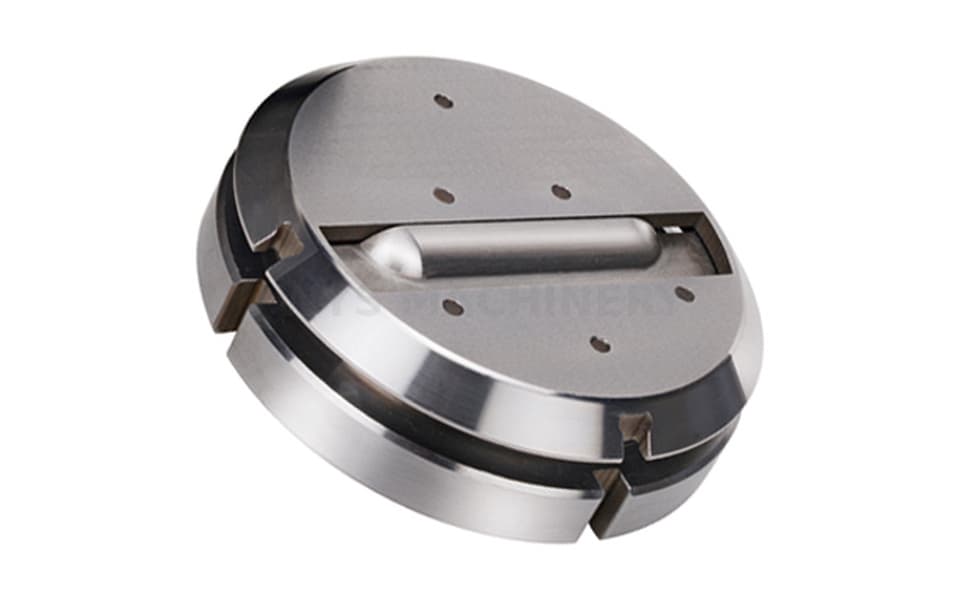

• Matching lower forming die
• Cutting and forming profiles
• Station-specific mounting structure
• Precision-machined forming surfaces

The D Station configuration provides the physical space and structural capacity required for a relatively large louver profile. However, the correct station selection must still consider the louver dimensions, sheet thickness, material strength, required forming height, machine tonnage and available station capacity.

Louver dimensions are not fixed. WYS Machinery can customize the louver length, width, opening height, forming direction, transition radii and detailed profile according to the customer’s finished-part drawing.

In addition to thick turret louver tooling, WYS Machinery can manufacture custom louver forming tools for compatible TRUMPF Type and Murata Wiedemann Type punching systems. These tooling systems use different mounting interfaces and tool structures and are not interchangeable. The appropriate design is developed only after the machine model and application requirements have been confirmed.

The products are compatible replacement tools manufactured by WYS Machinery. References to TRUMPF and Murata Wiedemann describe the applicable tooling systems and do not imply original manufacture, authorization or official affiliation.

Key Features

• D Station thick turret tooling configuration
• Special sheet metal cutting and forming tool
• Produces raised ventilation louvers
• Cutting and forming completed in a controlled machine stroke
• Complete matching upper-tool and lower-die assembly
• Custom louver length and width
• Custom forming height
• Upward or downward forming direction available according to application
• Custom opening direction and installation orientation
• Profile designed according to sheet thickness
• Suitable for mild steel, stainless steel, aluminum and other formable sheet materials
• Precision-machined cutting and forming surfaces
• Controlled transition radii
• Designed according to machine tonnage and station capacity
• Helps reduce separate cutting and forming operations
• Suitable for repeated louver patterns
• Custom tooling developed from part drawings
• Thick turret, TRUMPF Type and Murata Wiedemann Type options available
• Complete tooling and replacement components available
• Free tooling design and application evaluation

Technical Specifications

How the Louver Forming Tool Works

A louver tool produces a three-dimensional ventilation feature by combining localized cutting and plastic deformation.

A typical forming cycle includes:

• The sheet is positioned between the upper tool and lower die
• The punch press initiates a controlled forming stroke
• The cutting section creates the required slit
• The forming profile progressively displaces the sheet
• The mating tool geometry controls the louver shape and height
• The tool retracts after reaching the programmed forming depth
• The formed sheet is released for continued processing

The process allows the louver to be produced directly on the punch press without transferring the workpiece to a separate cutting and forming machine.

The final louver quality depends on:

• Louver length and width
• Required opening height
• Sheet material
• Sheet thickness
• Material tensile strength
• Material elongation
• Rolling direction
• Cutting-edge condition
• Forming clearance
• Transition radii
• Machine stroke control
• Upper and lower tool alignment
• Distance from nearby holes and sheet edges

Louver Size and Forming Height Customization

The size of a louver cannot be defined by length alone. A complete custom louver specification should include:

• Overall louver length
• Louver opening width
• Raised forming height
• Opening direction
• Upward or downward forming
• End radius
• Transition radius
• Side-wall angle
• Sheet thickness
• Sheet material
• Distance from the louver to nearby edges
• Distance between adjacent louvers
• Required ventilation area

WYS Machinery designs the complete cutting and forming profile according to the finished-part requirements.

An excessive forming height may increase:

• Material stretching
• Local sheet thinning
• Risk of cracking
• Forming force
• Surrounding sheet distortion
• Difficulty releasing the workpiece
• Risk of tool interference

The forming height should therefore be evaluated together with the louver size, material type, sheet thickness and available machine stroke.

Upward and Downward Louver Forming

A louver can be formed upward or downward according to the required airflow direction, visible surface and installation position of the finished component.

Customers should clearly identify:

• The visible side of the sheet
• Required louver opening direction
• Required forming direction
• Sheet-feeding direction
• Position of nearby clamps
• Position of nearby holes, bends and edges

Changing the forming direction may require a different upper and lower tool configuration. The required direction should be confirmed before manufacturing.

Forming Clearance and Material Flow

The working clearance of a louver forming tool is different from the die clearance used for an ordinary piercing punch.

In conventional punching, the clearance controls material fracture and slug separation. In louver forming, the tool must both cut the slit and provide sufficient space for the sheet to flow into the required three-dimensional profile.

The tool design must consider:

• Cutting clearance at the slit
• Forming clearance between mating profiles
• Sheet thickness
• Material strength
• Material elongation
• Required forming height
• Transition radius
• Material springback
• Tool-release requirements

Incorrect clearance may cause:

• Excessive cutting force
• Large burrs
• Material tearing
• Cracking around the louver ends
• Excessive sheet thinning
• Inconsistent forming height
• Surface scratches
• Tool sticking
• Poor workpiece release

Punching Force and Machine Capacity

The required machine force depends on both the cutting and forming portions of the process.

Important factors include:

• Cutting length
• Sheet thickness
• Material shear strength
• Louver width
• Forming height
• Material tensile strength
• Forming radii
• Tool condition
• Machine stroke and speed
• Tooling alignment

Although the pictured tool uses a D Station structure, installation in a D Station does not automatically confirm that every louver profile is suitable.

Before manufacturing, WYS Machinery evaluates:

• Machine manufacturer and model
• Available machine tonnage
• Maximum station capacity
• Tooling installation dimensions
• Required louver dimensions
• Sheet material and thickness
• Required forming height
• Machine stroke-control capability

Very large or high louver profiles may require a larger station, a different tooling system or a modified forming strategy.

Repeated Louver Patterns

Louver tools are commonly used to produce multiple parallel ventilation openings on a single panel.

For repeated patterns, the finished-part drawing should specify:

• Louver quantity
• Center-to-center spacing
• Row direction
• Opening direction
• Distance from panel edges
• Distance from bends and existing holes
• Required ventilation area
• Visible-side requirements

Appropriate spacing helps reduce interaction between adjacent formed areas and limits surrounding panel distortion.

Benefits of Punch-Press Louver Forming

Producing louvers directly on a CNC punch press can provide:

• Cutting and forming in one machine setup
• Reduced secondary processing
• Fewer workpiece transfers
• Repeatable louver positioning
• Consistent spacing between louvers
• Improved batch-production efficiency
• Reduced manual forming operations
• Integration with other punched and formed features
• Efficient production of ventilation panels
• Flexible custom profile design

One machine program can combine louvers with round holes, square openings, knockouts, embosses and other sheet metal features where machine and tooling capacity permit.

Typical Applications

The D Station Thick Turret Louver Forming Tool is suitable for producing ventilation and functional louver profiles in:

• Electrical cabinets
• Control enclosures
• Switchgear panels
• Power-distribution equipment
• HVAC systems
• Air-conditioning equipment
• Cooling-unit covers
• Electronic equipment housings
• Communication cabinets
• Server and data equipment enclosures
• Machinery guards
• Generator covers
• Compressor housings
• Food-service equipment
• Industrial appliances
• Automotive sheet metal components
• Metal furniture
• Stainless steel equipment
• General sheet metal panels

Typical louver functions include:

• Air intake
• Heat dissipation
• Equipment ventilation
• Cooling-system airflow
• Protective ventilation openings
• Decorative ventilation patterns
• Sheet location or stopping features in specialized applications

Thick Turret D Station Compatibility

The product shown uses a D Station thick turret structure. It should be installed only in a compatible D Station after the machine and tooling dimensions have been verified.

Thick turret tooling from different machine manufacturers may share similar station terminology while still having differences in:

• Tool height
• Guide structure
• Retaining system
• Key or locating position
• Lower-die dimensions
• Station track configuration
• Indexing structure
• Shut height
• Tool-release arrangement

Customers should provide the exact machine manufacturer and model before ordering.

TRUMPF Type Louver Forming Tools

WYS Machinery can manufacture custom louver forming tools for compatible TRUMPF punching and punch-laser machines.

Available customization can include:

• Single-louver forming tools
• Custom louver length
• Custom louver width
• Custom forming height
• Upward or downward forming
• Cutting and forming configurations
• Tooling designed for specific sheet thicknesses
• Replaceable working components where structurally suitable
• Machine-specific mounting structures

TRUMPF Type tooling uses a different cartridge and mounting structure from thick turret tooling. The pictured D Station tool is not a TRUMPF Type tool and cannot be installed directly in a TRUMPF tooling system.

Customers requiring a compatible TRUMPF Type louver tool should provide the exact machine model, tooling size, sheet information and finished-part drawing.

Murata Wiedemann Type Louver Forming Tools

WYS Machinery can also design and manufacture louver forming tools for compatible Murata Wiedemann punch press tooling systems.

The tooling structure is selected according to:

• Murata Wiedemann machine model
• Applicable tooling series
• Required station
• Existing guide and holder structure
• Louver dimensions
• Sheet material and thickness
• Forming height and direction
• Existing tooling sample or drawing

Murata Wiedemann Type louver tools use system-specific mounting and guide structures and are not interchangeable with D Station thick turret or TRUMPF Type tooling.

Customers can send machine information, existing tooling dimensions and finished-part drawings for compatibility confirmation and free tooling design support.

Other Custom Punch Press Forming Tools

In addition to louver tooling, WYS Machinery can manufacture custom forming tools such as:

• Embossing tools
• Dimple forming tools
• Extrusion tools
• Knockout tools
• Bridge forming tools
• Lance-and-form tools
• Rib forming tools
• Countersink tools
• Marking tools
• Hinge forming tools
• Bending tools
• Custom special-shaped forming tools

These tools can be developed for thick turret, thin turret, TRUMPF Type, Murata Wiedemann Type and other compatible punch press tooling systems after technical confirmation.

Manufacturing Quality

The D Station louver forming tool is manufactured through controlled machining, heat treatment, precision grinding and assembly processes.

Quality inspection can include:

• D Station mounting-dimension inspection
• Upper and lower tool alignment checking
• Cutting-profile measurement
• Louver-length verification
• Forming-width measurement
• Forming-height verification
• Transition-radius inspection
• Cutting-clearance verification
• Forming-clearance inspection
• Working-surface inspection
• Tool-hardness testing
• Component movement testing
• Assembly inspection
• Trial forming where required

Accurate coordination between the cutting and forming profiles helps produce consistent louvers while reducing material tearing, excessive burrs and tool interference.

Installation and Trial Forming

Before installation:

• Confirm the exact machine model
• Verify the D Station tooling structure
• Check the upper tool and lower die as a matching set
• Confirm the sheet material and thickness
• Confirm the louver length and width
• Confirm the required forming height
• Verify the opening and forming direction
• Clean the tool and machine station
• Inspect the cutting and forming surfaces
• Confirm upper and lower tool alignment
• Check the programmed stroke and machine capacity

During initial trial forming:

• Use production-equivalent test material
• Begin with a conservative forming depth
• Increase the forming depth gradually
• Check the louver length, opening and height
• Inspect both ends for cracking
• Check the slit for excessive burrs
• Inspect surrounding sheet flatness
• Confirm smooth tool release
• Save the verified machine and CNC settings

Maintenance

Regular maintenance should include:

• Cleaning the cutting and forming surfaces
• Removing metal particles and material residue
• Inspecting the cutting edges
• Checking for localized chipping
• Monitoring burr formation
• Inspecting forming surfaces for scratches or galling
• Checking upper and lower tool alignment
• Inspecting moving or spring-loaded components where fitted
• Applying suitable lubrication
• Checking screws and retaining components
• Protecting working surfaces during storage

A louver tool contains both cutting and forming areas. Maintenance should therefore evaluate the complete working profile rather than only sharpening a conventional cutting edge.

Ordering Information Required

Standard and Custom Louver Tooling

WYS Machinery supplies standard and custom punch press louver forming tools for ventilation and functional sheet metal applications.

Available options include:

• D Station thick turret louver tools
• Other thick turret station configurations where technically suitable
• TRUMPF Type louver forming tools
• Murata Wiedemann Type louver forming tools
• Custom louver lengths and widths
• Custom forming heights
• Upward and downward forming
• Custom opening directions
• Material-specific cutting and forming clearances
• Complete upper and lower tool sets
• Individual replacement components
• Tooling manufactured from existing samples
• Tooling developed from machine drawings
• Tooling designed from finished-part drawings
• OEM and private-label manufacturing

Customers can send their finished-part drawing, machine model, sheet material and thickness. Our engineering team can evaluate the louver profile, tooling structure, station capacity and forming requirements and provide free tooling design support.

Product Identification and Frequently Asked Questions

What is a louver forming tool?

A louver forming tool is a special punch press tool that cuts and forms a raised ventilation opening in sheet metal.

Is “louvre tool” also correct?

Yes. “Louver” is the common American English spelling, while “louvre” is used in British English. This product page uses “louver” as the primary term.

Is the pictured product a cutting tool or a forming tool?

It is classified as a special forming tool because its primary purpose is to produce a three-dimensional louver. The process also includes a controlled cutting action to create the louver opening.

Does the pictured product include both upper and lower components?

Yes. The photographs show a matching upper-tool and lower-die assembly.

Can the louver size be customized?

Yes. Length, width, height, transition radius and detailed profile can be manufactured according to the finished-part drawing.

Can the forming height be customized?

Yes. The height is designed according to the sheet material, thickness, louver dimensions and forming limits.

Can the tool form the louver upward or downward?

Yes. The forming direction can be customized, but the required direction must be confirmed before tool design.

Can it be used for stainless steel?

A suitable version can be designed for stainless steel. The material grade, thickness and mechanical properties should be provided because stainless steel may require different clearances, radii and forming-force calculations.

Can this D Station tool be installed in a TRUMPF punch press?

No. Thick turret and TRUMPF tooling use different mounting systems. A separate TRUMPF Type louver-tool structure must be manufactured.

Can you produce TRUMPF Type louver tools?

Yes. WYS Machinery can manufacture compatible TRUMPF Type louver forming tools according to the machine model and finished-part requirements. These tools are not shown in the current images.

Can you produce Murata Wiedemann Type louver tools?

Yes. Compatible Murata Wiedemann Type louver tools can be designed after confirming the machine model, tooling series, station and forming requirements.

Are these original TRUMPF or Murata Wiedemann tools?

No. They are compatible replacement tools manufactured by WYS Machinery. Brand references describe tooling-system compatibility and do not imply original manufacture or official affiliation.

Can you design the tooling from our product drawing?

Yes. Customers can send the finished-part drawing, machine information, material and thickness. WYS Machinery provides free tooling design and application evaluation.
