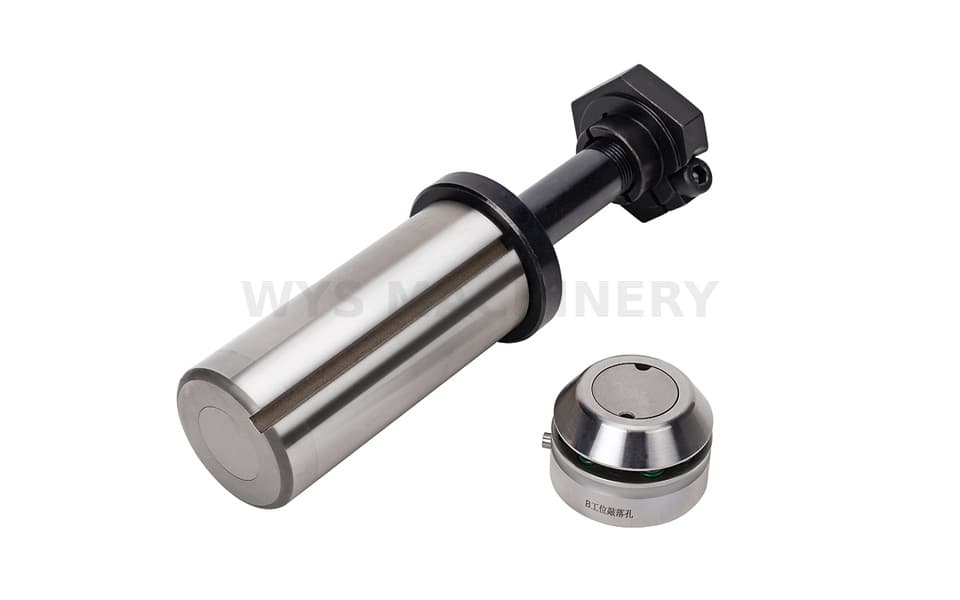

B Station Knockout Tool for Thick Turret Punch Press
B Station knockout tool for producing removable knockout holes in sheet metal on a thick turret punch press. The cutout remains attached by small retaining tabs and can be removed when required. Custom knockout shapes, sizes and tooling configurations are available.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This B Station knockout tool is designed to create removable knockout sections in sheet metal on a thick turret punch press. Most of the cutout perimeter is sheared while small retaining tabs keep the center slug securely attached to the sheet.
The retained section can be knocked out during installation to create a complete opening when required. Knockout shape, size, retaining-tab arrangement and tooling geometry can be customized according to the sheet material, thickness and application requirements.
WYS Machinery can manufacture knockout tooling for thick turret and thin turret systems in A, B, C, D and E station sizes. Custom configurations for TRUMPF and Murata Wiedemann punch press systems are also available.
Key Features
- Creates removable knockout holes in sheet metal
- Retaining tabs prevent the center slug from falling out
- Knockout section can be removed during installation
- B Station configuration for thick turret punch presses
- Round, square and custom knockout shapes available
- Knockout size and retaining-tab arrangement can be customized
- Thick turret and thin turret tooling available
- A, B, C, D and E station sizes available
- TRUMPF and Murata Wiedemann type structures available
- Custom manufacturing according to drawings and application requirements
Technical Specifications
| Item | Specification |
|---|---|
| Tool Type | Knockout Tool |
| Tooling System | Thick Turret |
| Station | B Station |
| Process | Partial-Perimeter Shearing |
| Cutout Condition | Retained / Removable |
| Retaining Tabs | Customizable |
| Knockout Shape | Round / Square / Custom |
| Knockout Size | Customizable |
| Sheet Material & Thickness | Application Dependent |
| Other Station Sizes | A / C / D / E Available |
| Other Tooling Systems | Thin Turret / TRUMPF / Murata Wiedemann Types |
| Customization | Drawing / Material / Application Based |
Typical Applications
- Electrical cabinets and enclosures
- Cable entry openings
- Electrical box knockouts
- Control panels
- Equipment housings
- Conduit and wiring access
- Installation access holes
- Custom removable sheet metal openings
Manufacturing Quality
Precision machining and controlled cutting clearance help maintain a clean knockout perimeter while leaving the required retaining tabs intact. Knockout geometry, tab size and tab position can be engineered according to the sheet material, thickness, opening dimensions and required removal force.
Standard & Custom
The tooling shown is one example of a B Station knockout solution and does not represent a limitation on available knockout shapes, sizes or retaining-tab configurations.
WYS Machinery can manufacture custom knockout tools according to customer drawings and application requirements. Round, square and special-shaped knockouts can be produced with customized dimensions and retaining-tab arrangements. Thick turret and thin turret configurations are available in A, B, C, D and E station sizes, as well as custom structures for TRUMPF and Murata Wiedemann punch press systems.
