B Station Embossing Tool for Turret Punch Press
B Station embossing tool for creating raised or recessed features in sheet metal on turret punch presses. Custom embossing profiles and dimensions are available, with A, B, C, D and E station tooling as well as TRUMPF and Murata Wiedemann type structures available on request.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

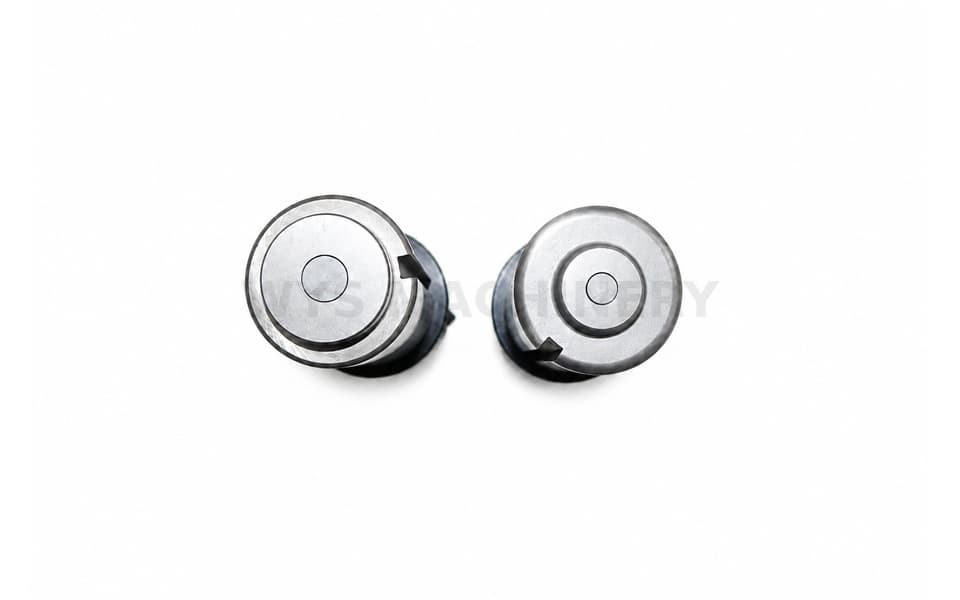

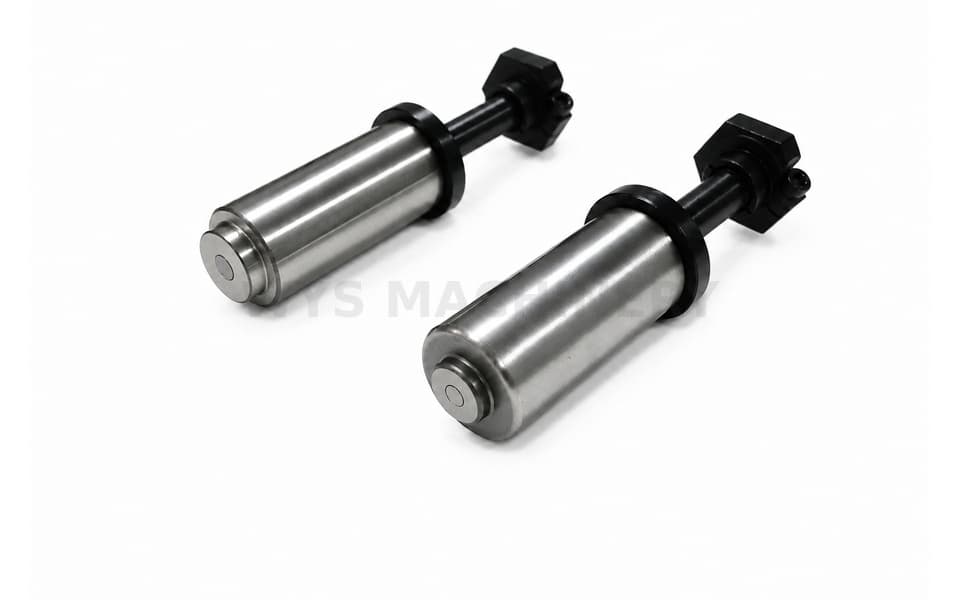

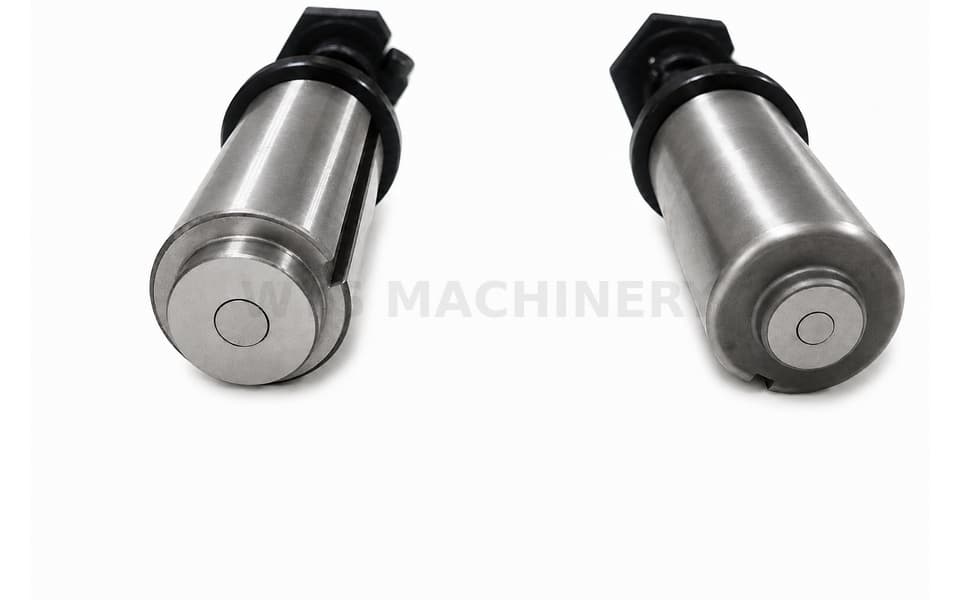

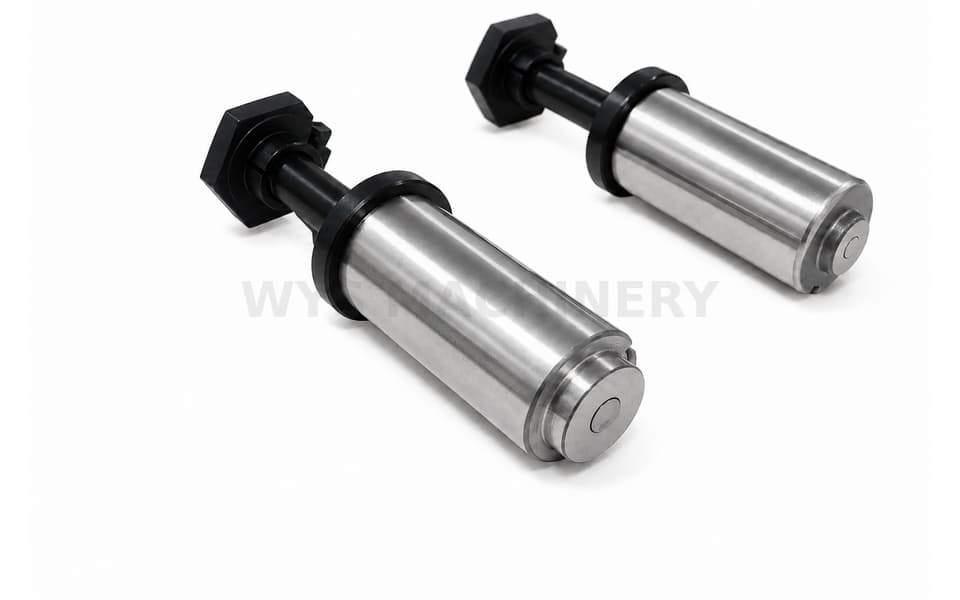

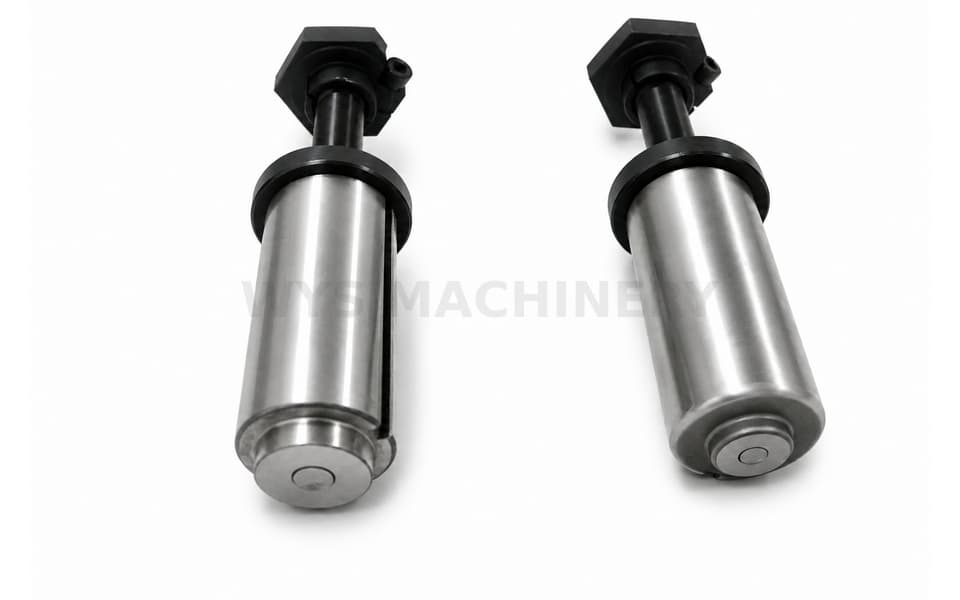

This B Station embossing tool is designed for creating raised or recessed features in sheet metal using a turret punch press. The matched punch and die form the required embossing profile during the punching stroke, providing consistent forming results for sheet metal components.
The tooling shown represents one custom embossing configuration. Embossing shape, diameter, height, clearance and other dimensions can be manufactured according to the customer's drawing, sample or forming requirements.
In addition to B Station tooling, WYS Machinery can manufacture A, C, D and E station embossing tools for different sheet metal applications. TRUMPF and Murata Wiedemann type structures are also available for compatible punch press systems.
Key Features
- B Station configuration for turret punch press applications
- Designed for raised or recessed sheet metal embossing
- Matched punch and die for consistent forming
- Embossing shape and dimensions can be customized
- A, B, C, D and E station tooling available
- TRUMPF and Murata Wiedemann type structures available
- Custom manufacturing according to drawings, samples or forming requirements
Technical Specifications
| Item | Specification |
|---|---|
| Tool Type | Embossing / Forming Tool |
| Station | B Station |
| Application | Sheet Metal Embossing |
| Tool Configuration | Punch & Die Set |
| Embossing Profile | Customizable |
| Embossing Diameter | Customizable |
| Embossing Height | Customizable |
| Other Station Sizes | A / C / D / E Available |
| Tooling Systems | Thick Turret / TRUMPF / Murata Wiedemann Types |
| Customization | Drawing / Sample / Application Based |
Typical Applications
- Electrical cabinets and enclosures
- Sheet metal panels
- Equipment housings
- Appliance panels
- Automotive sheet metal components
- Industrial sheet metal parts
- Custom raised or recessed sheet metal features
Manufacturing Quality
Precision machining and controlled manufacturing help maintain accurate punch and die alignment and consistent embossing results. Tool geometry and clearance can be engineered according to the workpiece material, thickness and required forming profile.
Standard & Custom
The tooling shown is one example of a custom B Station embossing solution and does not represent a limitation on available sizes or forming profiles.
WYS Machinery manufactures custom embossing tooling according to customer drawings, samples and sheet metal forming requirements. Different embossing shapes, diameters, heights and tooling configurations can be produced. A, B, C, D and E station tooling is available, as well as TRUMPF and Murata Wiedemann type structures for different punch press systems.
