B Station Countersink Forming Tool for Thick Turret Punch Press
B Station countersink forming tool for creating formed countersunk holes in sheet metal on a thick turret punch press. Countersink diameter, angle, depth and forming direction can be customized for different fastener and assembly requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This B Station countersink forming tool is designed to form a controlled conical recess around a pre-punched hole in sheet metal, providing a countersunk profile for flush or low-profile fastener installation.
Countersink diameter, angle, depth and forming direction can be customized according to the hole size, sheet material, thickness and fastener requirements. The forming process provides a repeatable countersink geometry directly on the punch press.
WYS Machinery can manufacture upward or downward countersink forming tools for thick turret and thin turret systems in A, B, C, D and E station sizes. TRUMPF and Murata Wiedemann type structures are also available for different punch press systems.
Key Features
- Forms countersunk profiles around pre-punched holes
- B Station configuration for thick turret punch presses
- Suitable for flush or low-profile fastener installation
- Countersink diameter, angle and depth can be customized
- Upward and downward forming configurations available
- Designed according to hole size, material and sheet thickness
- Thick turret and thin turret tooling available
- A, B, C, D and E station sizes available
- TRUMPF and Murata Wiedemann type structures available
- Custom manufacturing according to drawings and application requirements
Technical Specifications
| Item | Specification |
|---|---|
| Tool Type | Countersink Forming Tool |
| Tooling System | Thick Turret |
| Station | B Station |
| Forming Feature | Countersunk Hole |
| Forming Method | Sheet Metal Forming |
| Countersink Diameter | Customizable |
| Countersink Angle | Customizable |
| Forming Depth | Customizable |
| Hole Diameter | Customizable |
| Forming Direction | Upward / Downward |
| Other Station Sizes | A / C / D / E Available |
| Other Tooling Systems | Thin Turret / TRUMPF / Murata Wiedemann Types |
| Customization | Drawing / Material / Fastener / Application Based |
Typical Applications
- Electrical cabinets and enclosures
- Sheet metal panels
- Equipment housings
- Machine covers
- Flush screw installation
- Low-profile fastener assemblies
- Industrial sheet metal components
- Custom countersunk fastening points
Manufacturing Quality
Precision-machined forming profiles help maintain consistent countersink diameter, angle and depth. Tool geometry can be engineered according to the pre-punched hole, sheet thickness, material properties and required fastener seating condition for stable and repeatable forming results.
Standard & Custom

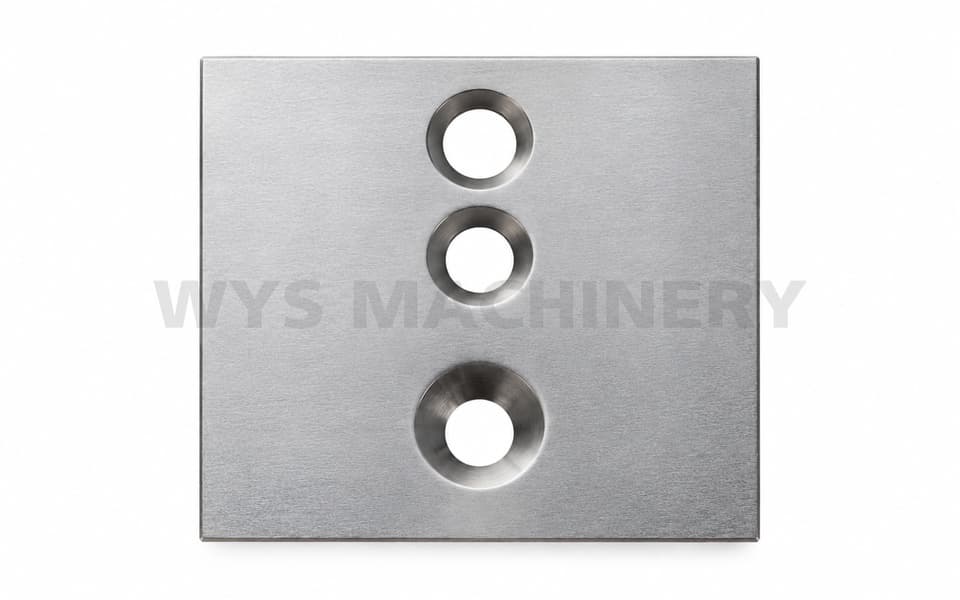

The tooling shown is one example of a B Station countersink forming solution and does not represent a limitation on available countersink dimensions, angles or tooling configurations.
WYS Machinery can manufacture custom countersink forming tools according to customer drawings, sheet materials and fastener requirements. Countersink diameter, angle, depth and forming direction can be customized. Thick turret and thin turret configurations are available in A, B, C, D and E station sizes, as well as TRUMPF and Murata Wiedemann type structures.
