C Station Three-Rib Roller Forming Tool for Thick Turret Punch Press
C Station three-rib roller forming tool for producing three parallel ribs simultaneously in sheet metal on a thick turret punch press. Rib profile, spacing and dimensions can be customized, with upward or downward forming and multiple tooling systems available.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

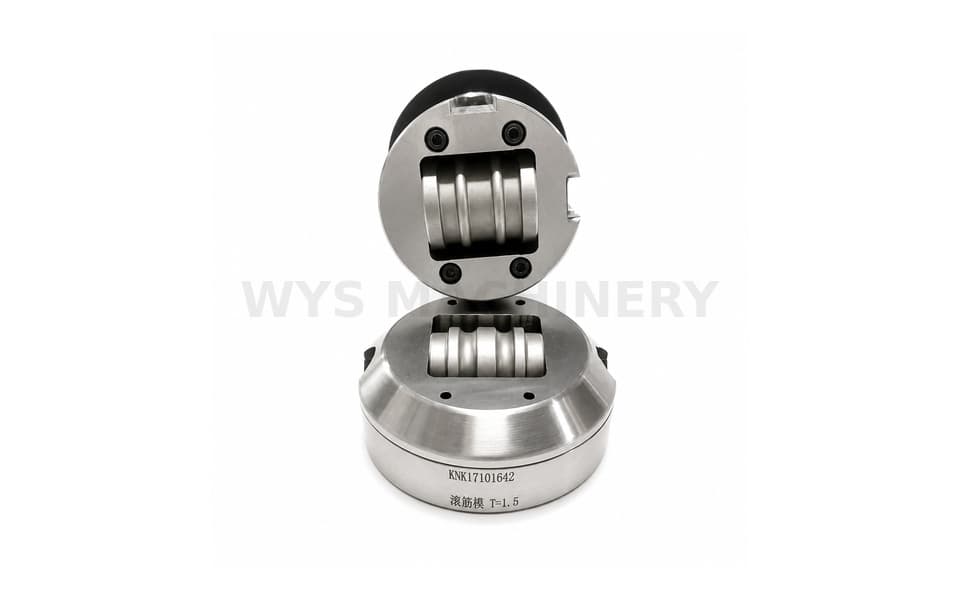

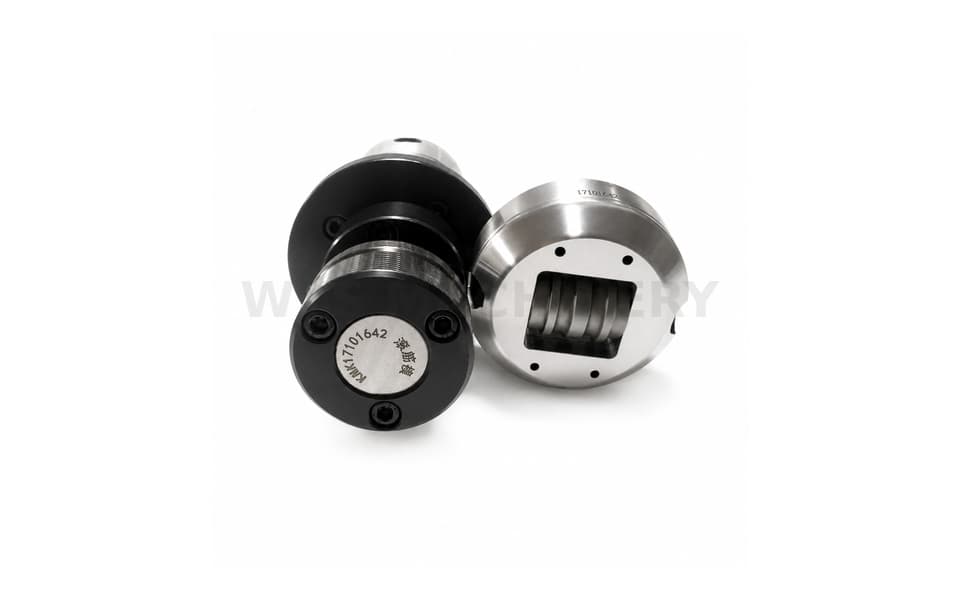

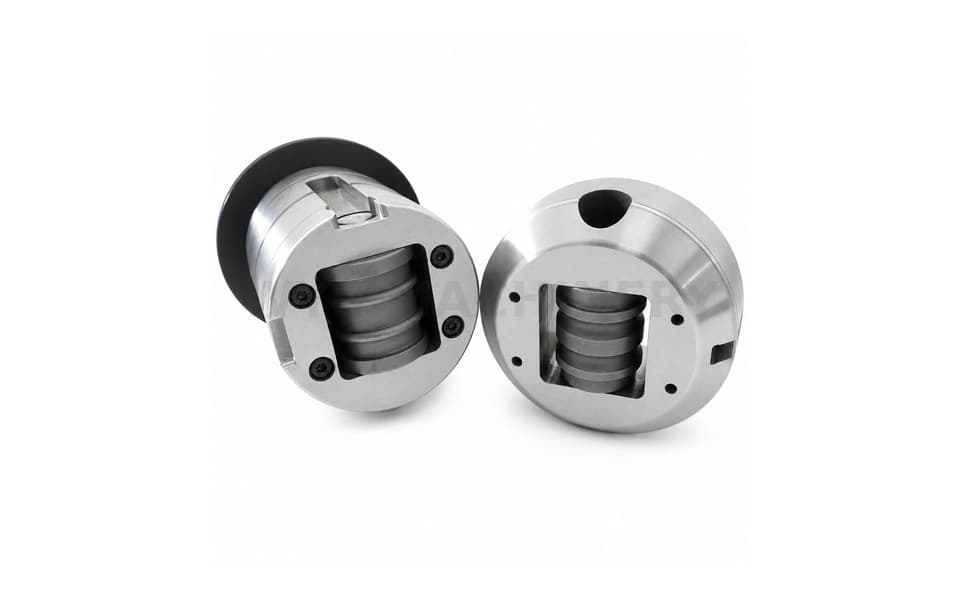

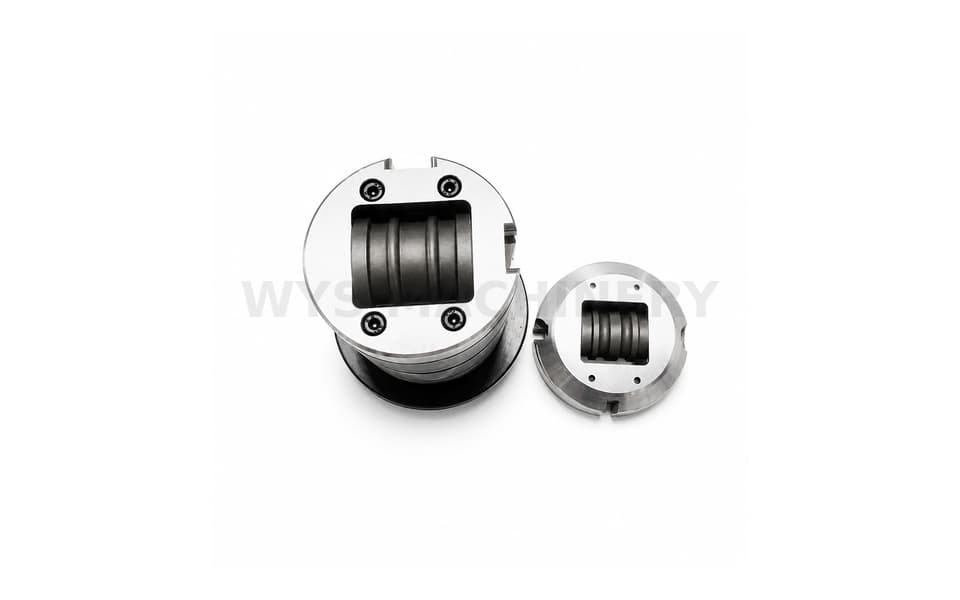

This C Station three-rib roller forming tool is designed to produce three parallel ribs simultaneously in sheet metal on a thick turret punch press. The matched roller profiles form continuous reinforcing or functional ribs as the sheet moves through the tooling.
Rib width, height, spacing, profile and forming direction can be customized according to the sheet material, thickness and application requirements. The three-rib design allows multiple parallel features to be formed together for improved processing efficiency and consistent spacing.
WYS Machinery can manufacture upward or downward roller forming tools in thick turret and thin turret configurations, with A, B, C, D and E station sizes available. TRUMPF and Murata Wiedemann type structures can also be produced for different punch press systems.
Key Features
- Forms three parallel ribs simultaneously
- Roller forming design for continuous sheet metal features
- C Station configuration for thick turret punch presses
- Rib width, height, spacing and profile can be customized
- Upward and downward forming configurations available
- Suitable for reinforcing and functional sheet metal ribs
- Thick turret and thin turret tooling available
- A, B, C, D and E station sizes available
- TRUMPF and Murata Wiedemann type structures available
- Custom manufacturing according to drawings and forming requirements
Technical Specifications
| Item | Specification |
|---|---|
| Tool Type | Three-Rib Roller Forming Tool |
| Tooling System | Thick Turret |
| Station | C Station |
| Forming Method | Roller Forming |
| Rib Quantity | 3 |
| Rib Arrangement | Parallel |
| Rib Width | Customizable |
| Rib Height | Customizable |
| Rib Spacing | Customizable |
| Rib Profile | Customizable |
| Forming Direction | Upward / Downward |
| Other Station Sizes | A / B / D / E Available |
| Other Tooling Systems | Thin Turret / TRUMPF / Murata Wiedemann Types |
| Customization | Drawing / Material / Application Based |
Typical Applications
- Sheet metal reinforcing ribs
- Electrical cabinets and enclosures
- Equipment panels and housings
- Structural sheet metal components
- Stiffening features on large panels
- Industrial covers and panels
- Custom continuous rib profiles
- Functional sheet metal forming
Manufacturing Quality
Precision-machined roller profiles help maintain consistent rib geometry, spacing and forming quality during continuous sheet metal processing. Roller geometry and tooling configuration can be engineered according to the required rib profile, sheet thickness, material properties and forming direction.
Standard & Custom
The tooling shown is one example of a C Station three-rib roller forming solution and does not represent a limitation on available rib profiles, dimensions or tooling configurations.
WYS Machinery can manufacture custom roller forming tools according to customer drawings and sheet metal forming requirements. Rib quantity, width, height, spacing and profile can be customized. Upward and downward designs are available, with thick turret and thin turret configurations in A, B, C, D and E station sizes, as well as TRUMPF and Murata Wiedemann type structures.
