D Station Multi-Hole Punching Tool for Turret Punch Press
D Station multi-hole punching tool designed to punch multiple holes in a single press stroke, improving efficiency and maintaining consistent hole spacing. Hole quantity, diameter, spacing and pattern can be customized. A–E station sizes, TRUMPF and Murata Wiedemann type structures are available on request.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This D Station multi-hole punching tool is designed to produce multiple holes simultaneously in a single press stroke, helping improve punching efficiency while maintaining consistent hole position and spacing across the workpiece.

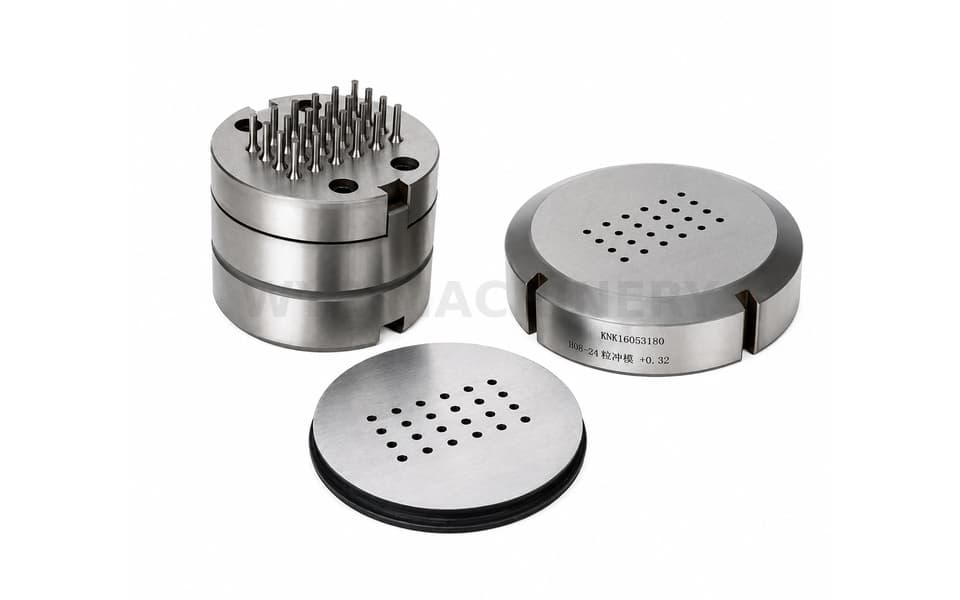

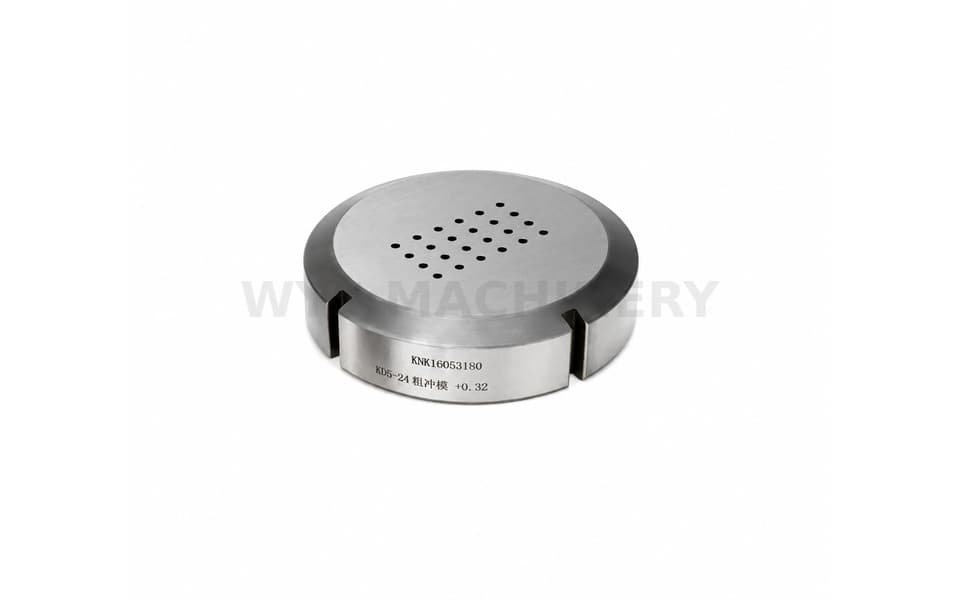

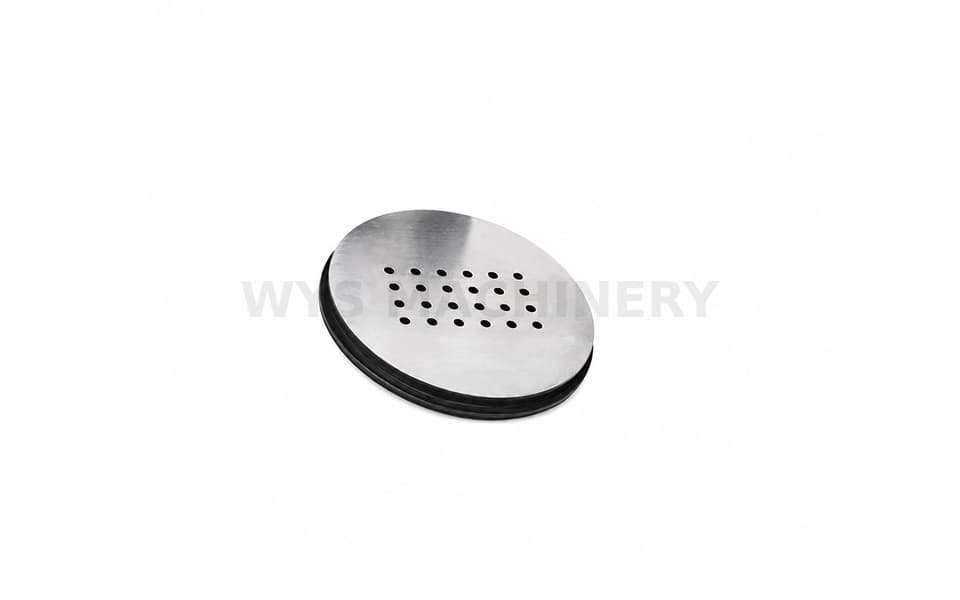

The tooling shown features one custom hole arrangement. Hole quantity, diameter, spacing, layout and overall tooling configuration can be manufactured according to customer drawings and sheet metal punching requirements.
In addition to D Station tooling, WYS Machinery can manufacture A, B, C and E station multi-hole tools. TRUMPF and Murata Wiedemann type structures are also available for different punch press systems.
Key Features
- Multiple holes punched simultaneously in one press stroke
- D Station configuration for turret punch press applications
- Custom hole quantity, diameter, spacing and pattern
- Suitable for repeated multi-hole sheet metal punching
- A, B, C, D and E station configurations available
- TRUMPF and Murata Wiedemann type structures available
- Custom manufacturing according to drawings and application requirements
Technical Specifications
| Item | Specification |
|---|---|
| Tool Type | Multi-Hole Punching Tool |
| Station | D Station |
| Application | Multiple-Hole Sheet Metal Punching |
| Hole Quantity | Customizable |
| Hole Diameter | Customizable |
| Hole Spacing | Customizable |
| Hole Pattern / Layout | Customizable |
| Other Station Sizes | A / B / C / E Available |
| Tooling Systems | Thick Turret / TRUMPF / Murata Wiedemann Types |
| Customization | Drawing / Application Based |
Typical Applications
- Ventilation hole patterns
- Electrical cabinets and enclosures
- Control panels
- Equipment housings
- Filter and perforated components
- Appliance sheet metal parts
- Industrial panels
- Repetitive custom hole patterns
Manufacturing Quality
Precision machining helps maintain accurate punch-to-die alignment, consistent hole spacing and reliable punching performance. Punch layout and die clearance can be engineered according to the required hole pattern, workpiece material, sheet thickness and application requirements.
Standard & Custom
The tooling shown is one example of a custom D Station multi-hole punching solution and does not represent a limitation on available hole quantities, dimensions or patterns.
WYS Machinery can manufacture multi-hole punching tools according to customer drawings and application requirements. Hole diameter, quantity, spacing, arrangement and tooling configuration can be customized. A, B, C, D and E station sizes are available, as well as TRUMPF and Murata Wiedemann type structures for different punch press systems.
