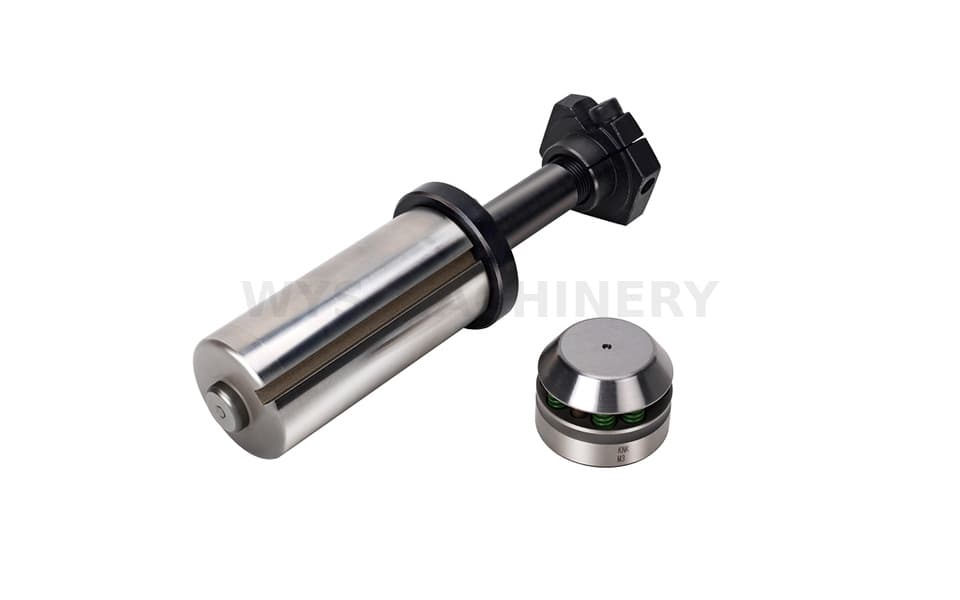

B Station Extrusion Forming Tool for Thick Turret Punch Press
B Station extrusion forming tool for producing flanged or extruded holes in sheet metal, increasing the effective hole wall height for fastening, tapping and assembly applications. Hole diameter, flange height and forming direction can be customized.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

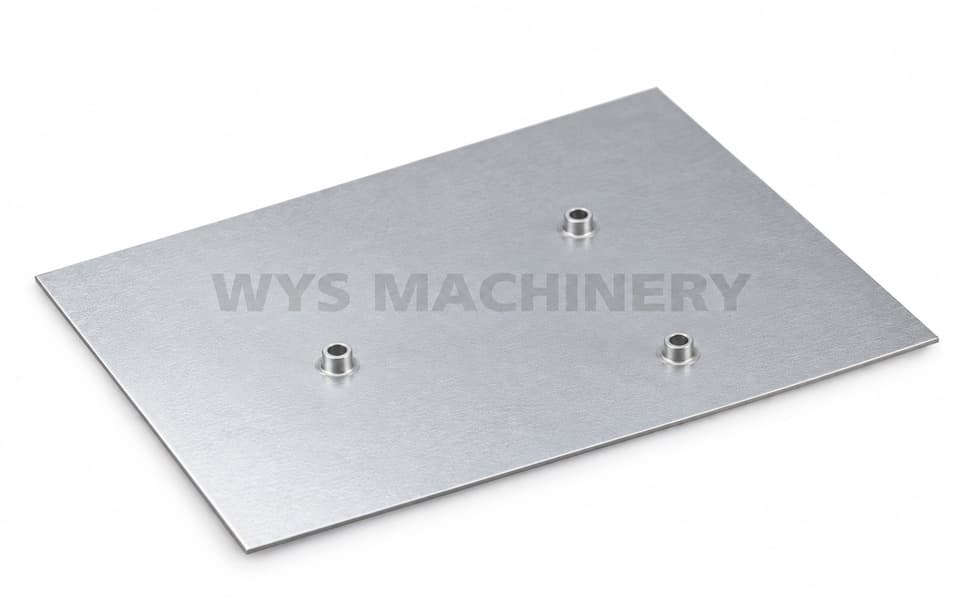

This B Station extrusion forming tool is designed to form a raised flange around a pre-punched hole in sheet metal. The forming process increases the effective wall height around the hole, providing additional material for tapping, fastening or other assembly requirements.
Hole diameter, flange height and forming geometry can be customized according to the sheet material, thickness and application requirements. Upward and downward forming configurations are available.
WYS Machinery can manufacture extrusion forming tools for thick turret and thin turret systems in A, B, C, D and E station sizes. TRUMPF and Murata Wiedemann type structures can also be produced for different punch press systems.
Key Features
- Forms extruded or flanged holes in sheet metal
- Increases effective hole wall height
- Suitable for subsequent tapping and fastening applications
- B Station configuration for thick turret punch presses
- Hole diameter and flange height can be customized
- Forming geometry can be matched to material and sheet thickness
- Upward and downward forming configurations available
- Thick turret and thin turret tooling available
- A, B, C, D and E station sizes available
- TRUMPF and Murata Wiedemann type structures available
- Custom manufacturing according to drawings and application requirements
Technical Specifications
| Item | Specification |
|---|---|
| Tool Type | Extrusion Forming Tool |
| Tooling System | Thick Turret |
| Station | B Station |
| Formed Feature | Extruded / Flanged Hole |
| Forming Method | Hole Extrusion |
| Hole Diameter | Customizable |
| Flange Height | Customizable |
| Forming Geometry | Customizable |
| Forming Direction | Upward / Downward |
| Sheet Material & Thickness | Application Dependent |
| Other Station Sizes | A / C / D / E Available |
| Other Tooling Systems | Thin Turret / TRUMPF / Murata Wiedemann Types |
| Customization | Drawing / Material / Application Based |
Typical Applications
- Threaded holes after tapping
- Electrical cabinets and enclosures
- Control panels
- Equipment housings
- Sheet metal fastening points
- Mechanical assembly components
- Increased thread engagement applications
- Custom flanged hole forming
Manufacturing Quality
Precision-machined forming profiles help maintain consistent hole diameter, flange height and formed geometry. Tool dimensions and forming clearances can be engineered according to the sheet thickness, material properties, pre-punched hole size and required final feature.
Standard & Custom
The tooling shown is one example of a B Station extrusion forming solution and does not represent a limitation on available hole sizes, flange heights or tooling configurations.
WYS Machinery can manufacture custom extrusion forming tools according to customer drawings, sheet materials and application requirements. Hole diameter, flange height, forming geometry and forming direction can be customized. Thick turret and thin turret configurations are available in A, B, C, D and E station sizes, as well as TRUMPF and Murata Wiedemann type structures.
