B Station Single Bridge Forming Tool for Thick Turret Punch Press
B Station single bridge forming tool designed to create raised bridge-shaped features in sheet metal on thick turret punch presses. Bridge length, width, height and profile can be customized. Thin turret, A–E station, TRUMPF and Murata Wiedemann type tooling is also available.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

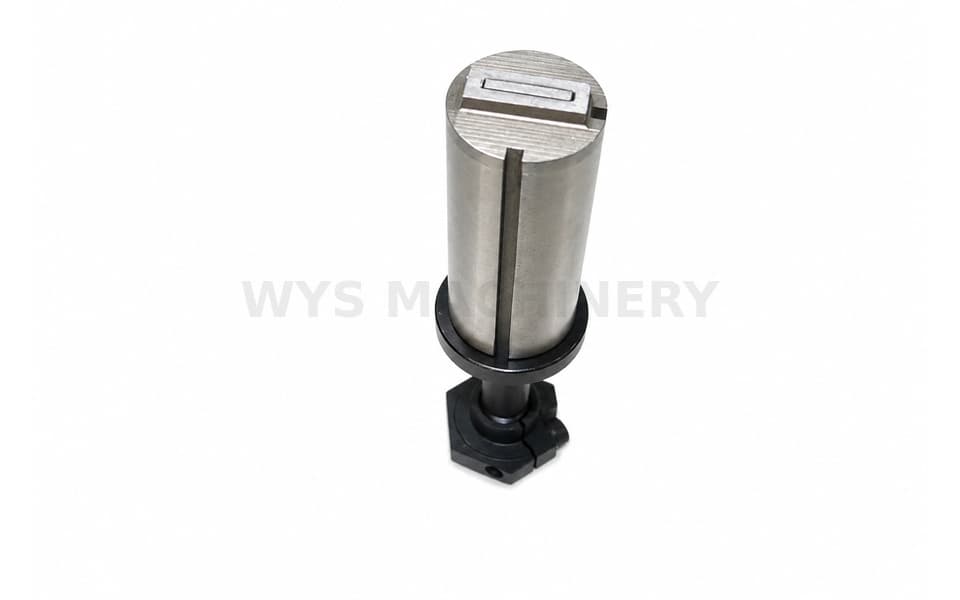

This B Station single bridge forming tool is designed to create raised bridge-shaped features in sheet metal using a thick turret punch press. The forming operation produces a controlled bridge profile while keeping the formed section connected to the surrounding sheet.
The bridge length, width, height, profile and tooling dimensions can be customized according to the customer's drawing, material and forming requirements.
In addition to B Station thick turret tooling, WYS Machinery can manufacture A, C, D and E station configurations, thin turret tooling, as well as TRUMPF and Murata Wiedemann type bridge forming tools for different punch press systems.
Key Features
- Single bridge forming design for sheet metal applications
- B Station configuration for thick turret punch presses
- Forms raised bridge-shaped features in a punching operation
- Bridge length, width, height and profile can be customized
- Thick turret and thin turret configurations available
- A, B, C, D and E station tooling available
- TRUMPF and Murata Wiedemann type structures available
- Custom manufacturing according to drawings and forming requirements
Technical Specifications
| Item | Specification |
|---|---|
| Tool Type | Single Bridge Forming Tool |
| Tooling System | Thick Turret |
| Station | B Station |

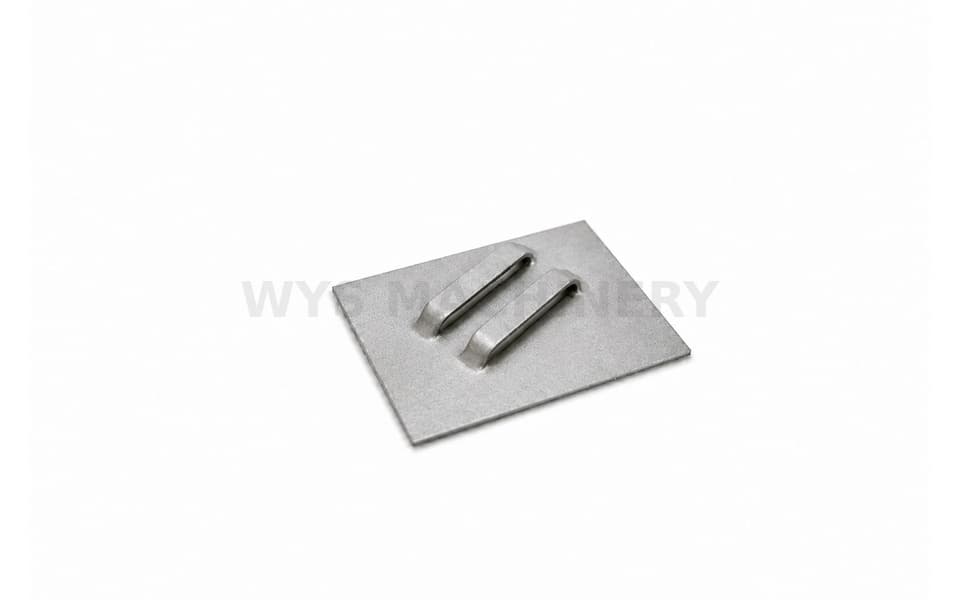

| Forming Type | Raised Single Bridge |
| Bridge Length | Customizable |
| Bridge Width | Customizable |
| Bridge Height | Customizable |
| Bridge Profile | Customizable |
| Other Station Sizes | A / C / D / E Available |
| Other Tooling Systems | Thin Turret / TRUMPF / Murata Wiedemann Types |
| Customization | Drawing / Sample / Application Based |
Typical Applications
- Electrical cabinets and enclosures
- Sheet metal panels
- Equipment housings
- Cable and wire management features
- Locating and retaining features
- Industrial sheet metal components
- Custom bridge-shaped sheet metal features
Manufacturing Quality
Precision machining helps maintain accurate punch and die alignment and consistent bridge geometry. Tool dimensions and forming clearance can be engineered according to the required bridge profile, sheet material, thickness and application requirements.
Standard & Custom
The tooling shown is one example of a B Station single bridge forming solution and does not represent a limitation on available bridge dimensions or tooling configurations.
WYS Machinery can manufacture custom bridge forming tools according to customer drawings, samples and forming requirements. Bridge length, width, height and profile can be customized. Thick turret and thin turret configurations are available in A, B, C, D and E station sizes, with TRUMPF and Murata Wiedemann type structures also available for different punch press systems.
