V10 35° Single-V Press Brake Lower Die for Sharp Acute-Angle Bending

This V10 press brake lower die is designed with a single-V structure for sheet metal bending applications requiring a sharp 35° groove and controlled acute-angle forming.

The illustrated model features a 10 mm V-opening, 35° die angle, 90 mm overall height and 20 mm body width, with a rated load capacity of 70 ton/m.

The combination of the V10 opening and 35° V-groove geometry makes this lower die suitable for sharp acute-angle air bending, pre-bending and multi-stage forming operations where a significantly narrower included angle is required than with conventional 60°, 85°, 88° or 90° dies.

Compared with smaller V-opening acute-angle dies, the V10 opening provides additional forming clearance while maintaining a compact lower-tool profile for precision bending applications.

35° V-Groove for Sharp Acute-Angle Forming

The 35° die angle provides a narrow included angle for demanding acute-angle bending applications.

Typical forming requirements can include:

• Sharp acute-angle air bending
• Pre-bending operations
• Multi-stage forming processes
• Precision flange bending
• Forming with additional springback allowance
• Preparation for subsequent forming operations
• Customized acute-angle sheet metal components

The appropriate tooling configuration should be selected according to the material, sheet thickness, required bending angle and workpiece geometry.

V10 Single-V Die Geometry

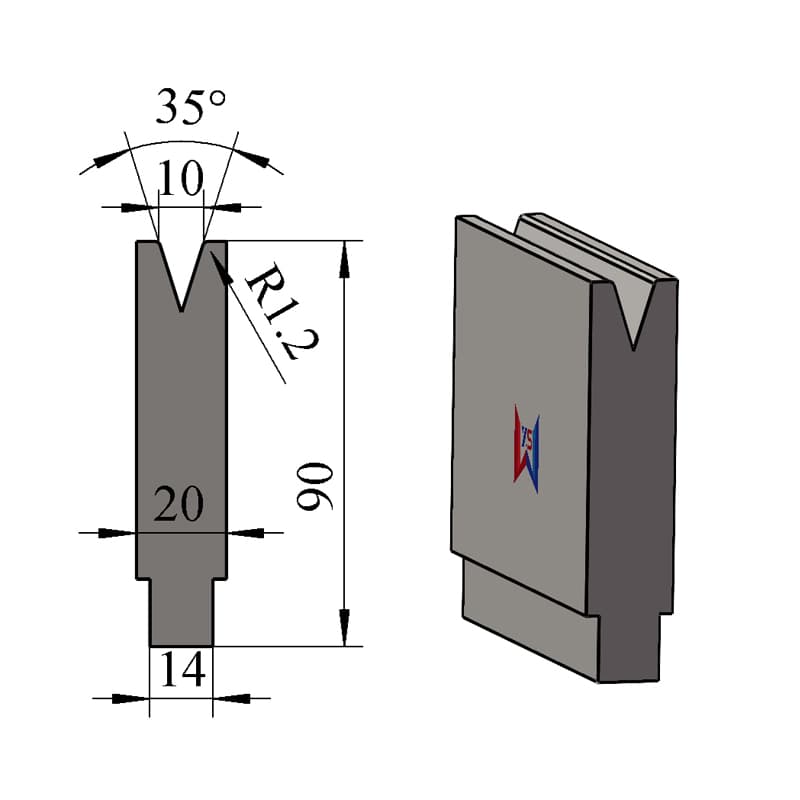

The illustrated lower die combines a 10 mm V-opening with a 20 mm body width, providing stable support around the forming zone.

Main dimensions include:

• V10 / 10 mm V-opening
• 35° die angle
• 90 mm overall height
• 75 mm effective height
• 20 mm body width
• 14 mm bottom mounting width
• Approx. R1.2 shoulder radius
• 70 ton/m load capacity

The die angle, shoulder geometry and surrounding edge dimensions can also be customized according to the required bending process.

Custom Effective Tool Height

The illustrated configuration has an effective working height of 75 mm.

The effective height is not limited to this dimension and can be manufactured according to the customer's:

• Press brake configuration
• Upper tooling height
• Machine daylight
• Clamping system
• Existing tooling combination

The overall tool height and effective height can therefore be coordinated as part of the complete tooling solution.

Key Features

• Single-V lower die structure
• V10 / 10 mm V-opening
• 35° sharp acute-angle V-groove
• 90 mm overall height
• 75 mm effective height
• Custom effective heights available
• 20 mm body width
• 14 mm bottom mounting width
• 70 ton/m load capacity
• Approx. R1.2 shoulder radius
• Suitable for sharp acute-angle bending
• Suitable for pre-bending and multi-stage forming
• Increased clearance compared with smaller V-openings
• Stable compact lower-tool structure
• Custom V-openings available
• Custom die angles available
• Custom edge and shoulder geometry available
• Custom tool lengths and segmentation available
• Custom mounting interfaces available

Technical Specifications

Typical Applications

This V10 35° single-V lower die is suitable for press brake forming applications including:

• Sharp acute-angle sheet metal bending
• Acute-angle air bending
• Pre-bending operations
• Multi-stage bending
• Precision flange forming
• Stainless steel sheet components
• Mild steel sheet components
• Electrical cabinet parts
• Sheet metal enclosures
• Precision machinery components
• Customized metal forming

The appropriate tooling specification should be selected according to the material grade, sheet thickness, required bend angle, inside radius, minimum flange dimension and required bending force.

Standard & Custom Options

The V10 35° lower die shown on this page represents one typical tooling configuration only.

WYS Machinery can customize:

• V-opening
• Die angle
• Overall height
• Effective working height
• Body width
• Shoulder radius
• Edge geometry
• Tool length
• Segmented length
• Load capacity
• Bottom mounting profile
• Positioning structure
• Clamping interface

Different acute-angle and standard-angle lower dies can be manufactured according to the customer's actual bending requirements.

Single-V, double-V, multi-V and other customized lower die structures are also available.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The lower die is not limited to the mounting structure shown in the drawing. The bottom mounting interface, positioning geometry, overall height, effective height and die cross-section can all be adapted according to the customer's press brake.

Customers can provide a machine model, existing tooling drawing, lower die cross-section, tooling sample or workpiece drawing for technical evaluation.

Custom V-Opening, Angle and Edge Geometry

The V10 opening and 35° die angle shown on this page are one available configuration.

Different V-openings and die angles can be manufactured according to:

• Sheet thickness
• Material grade
• Required bending angle
• Required inside radius
• Minimum flange dimension
• Material springback
• Required bending force
• Press brake configuration

The shoulder radius, edge dimensions and surrounding geometry can also be customized as part of the complete tooling solution.

Custom Press Brake Tooling Design Service

Customers who are unsure which V-opening, die angle or lower-tool structure should be selected can provide:

workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.

Our engineering team can evaluate the bending requirement and recommend an appropriate tooling solution.

The lower die can then be manufactured with the required V-opening, angle, height, effective height, width, radius, length and mounting structure.

Why Choose WYS Machinery

WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for a wide range of forming applications.

Our lower tooling capabilities include:

• Single-V lower dies
• Double-V dies
• Multi-V dies
• Sharp acute-angle press brake dies
• Small and medium V-opening dies
• High-capacity lower dies
• Segmented tooling
• Customized die angles
• Customized effective heights
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement tooling for different press brake systems
• Tooling designed according to customer workpiece drawings

This allows customers to obtain both replacement tooling and application-specific bending solutions according to their actual production requirements.
