V32 85° Wide-Base Single-V Press Brake Lower Die

This V32 85° press brake lower die uses a wide rectangular base structure with a single V-groove, providing a stable lower-tool configuration for sheet metal air bending.

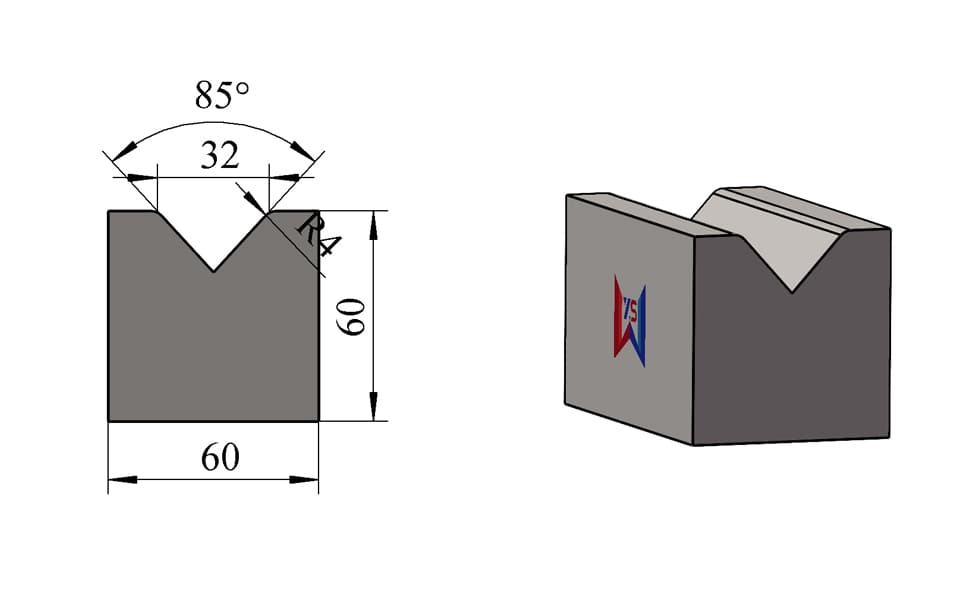

The illustrated model features:

V-Opening: V32 / 32 mm
Die Angle: 85°
Overall Height: 60 mm
Overall / Base Width: 60 mm
Groove Radius: R4
Rated Load Capacity: 100 ton/m

The wide-base design differs from plug-in lower dies that use a narrow mounting shank below the main die body. In this configuration, the 60 mm body width also forms the full-width base, providing a broad supporting surface beneath the V-groove.

The product shown here represents one standard configuration only. WYS Machinery can manufacture the lower die with different V-openings, angles, heights, widths, radii, lengths and mounting structures according to customer requirements.

85° V-Groove for Precision Air Bending

The 85° single-V groove is suitable for precision air-bending applications where some angular allowance may be required to compensate for material springback.

The actual bending result depends on several factors, including:

• Material grade
• Sheet thickness
• V-opening
• Punch angle
• Material springback
• Required inside bend radius
• Flange dimensions
• Required bending force

For this reason, the 85° angle shown is not a fixed limitation. Other die angles can also be manufactured according to the customer's bending process.

V32 Opening for Larger Forming Clearance

The illustrated lower die uses a 32 mm V-opening.

Compared with smaller V-openings, V32 provides a wider forming zone and greater clearance for the sheet during bending. It can be suitable for applications requiring a larger bending radius or more space around the workpiece.

The correct V-opening should always be selected according to the sheet thickness, material, required inside radius and minimum flange dimension.

Wide-Base Structure Instead of Plug-in Mounting

A key feature of this lower die is its full-width 60 mm base structure.

This design is structurally different from a plug-in lower die.

A plug-in lower die normally uses a narrower bottom mounting shank that is inserted into a compatible die holder.

This wide-base lower die instead uses a full-width supporting body, making it suitable for tooling systems or lower-die holders designed for a broader mounting surface.

The mounting structure can also be redesigned according to the customer's press brake and die holder.

Compact H60 × W60 mm Profile

The illustrated configuration has a compact:

60 mm overall height
and
60 mm overall/base width

This provides a relatively compact wide-base lower-tool profile while maintaining a rated capacity of 100 ton/m.

Both the height and width can be customized to match different machine and tooling combinations.

R4 Groove Radius

The illustrated V32 profile uses an R4 groove radius.

The groove radius can also be customized according to the required bending application, V-opening, material and workpiece geometry.

Key Features

• Wide-base single-V press brake lower die
• V32 / 32 mm V-opening
• 85° V-groove
• 60 mm overall height
• 60 mm overall/base width
• R4 groove radius
• 100 ton/m rated load capacity
• Full-width base structure
• Different from plug-in mounting dies
• Suitable for precision air bending
• Suitable for larger V-opening applications
• Custom V-opening available
• Custom die angle available
• Custom groove radius available
• Custom height and width
• Custom tool length and segmentation
• Custom mounting structure available

Technical Specifications

Typical Applications

This V32 85° wide-base single-V lower die is suitable for:

• Precision sheet metal air bending
• Near-right-angle bending
• Springback-compensation bending
• Precision flange forming
• Applications requiring a larger V-opening
• Stainless steel sheet bending
• Mild steel sheet bending
• Electrical cabinet components
• Sheet metal enclosures
• Industrial machinery components
• Customized press brake forming
• Tooling systems requiring a wide lower-die base

The final tooling specification should be selected according to the material grade, sheet thickness, required bend angle, inside radius, minimum flange dimension and required bending force.

Standard & Custom Options

The V32 85° wide-base lower die shown on this page represents one available configuration only.

WYS Machinery can customize:

• V-opening
• die angle
• overall height
• effective height
• overall width
• base width
• V-groove radius
• shoulder geometry
• edge dimensions
• tool length
• segmented length
• load capacity
• bottom mounting profile
• positioning structure
• clamping interface

In addition to wide-base single-V lower dies, WYS Machinery can manufacture:

plug-in single-V dies, T-type single-V dies, double-V dies, multi-V dies and other customized lower-die structures.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The wide-base mounting structure shown on this page is only one available design.

The bottom mounting profile, base structure, height, width and complete die cross-section can all be adapted according to the customer's press brake.

Customers can provide a machine model, existing tooling drawing, lower-die cross-section, die-holder dimensions, tooling sample or workpiece drawing for technical evaluation.

Custom V-Opening and Die Angle

The V32 opening and 85° angle shown here are not fixed limitations.

Different V-openings and die angles can be manufactured according to:

• Material type
• Sheet thickness
• Required bending angle
• Required inside radius
• Minimum flange dimension
• Material springback
• Required forming clearance
• Required bending force
• Press brake configuration

This allows the tooling to be adapted to the actual forming application rather than forcing the customer to use a fixed standard lower die.

Custom Mounting Structure

This product is a good example of how single-V lower dies can use different mounting structures.

WYS Machinery can manufacture:

Wide-Base Structure
Plug-in Mounting Structure
T-Type Structure
Other Customized Lower-Die Interfaces

The most suitable structure can be selected according to the customer's machine, die holder and tooling arrangement.

Custom Press Brake Tooling Design Service

Customers can provide:

workpiece drawings, material grade, sheet thickness, required bend angle, desired inside radius, existing tooling information and press brake model.

Our engineering team can evaluate the bending requirement and recommend an appropriate lower-die configuration.

The tooling can then be manufactured with the required V-opening, angle, height, width, groove radius, tool length and mounting structure.

Why Choose WYS Machinery

WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for different machine configurations and forming requirements.

Our lower-tooling capabilities include:

• Wide-base single-V lower dies
• Plug-in single-V lower dies
• T-type single-V lower dies
• Double-V dies
• Multi-V dies
• Large V-opening lower dies
• Custom-angle lower dies
• Customized V-openings
• Customized tooling heights
• Special cross-sectional profiles
• Segmented tooling
• Custom mounting interfaces
• Replacement tooling for different press brake systems
• Tooling manufactured according to customer drawings

The products displayed on our website demonstrate available tooling structures and manufacturing capabilities, while the final dimensions and mounting system can be adapted to the customer's actual production requirements.
